| طول | 101cm |
| عرض | 48cm |
| ارتفاع | 37.5cm |
| حداکثر ارتفاع شاسی از زمین | 4.2cm |
| وزن | 14,200g |

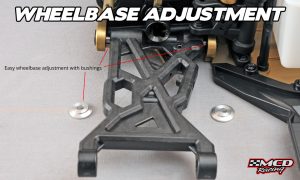

| فاصله از مرکز دو محور | 62cm |
| موتور | سفارشی |
| گیربکس | تک دنده فلزی |
| سیستم انتقال قدرت | دو دیفرانسیل |

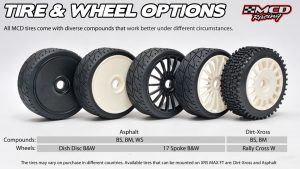

| سایز لاستیک | ارتفاع رینگ و لاستیک 16.3cm عرض رینگ و لاستیک 6.3cm |
| سایز رابط شش ضلعی پشت چرخ | 24mm |

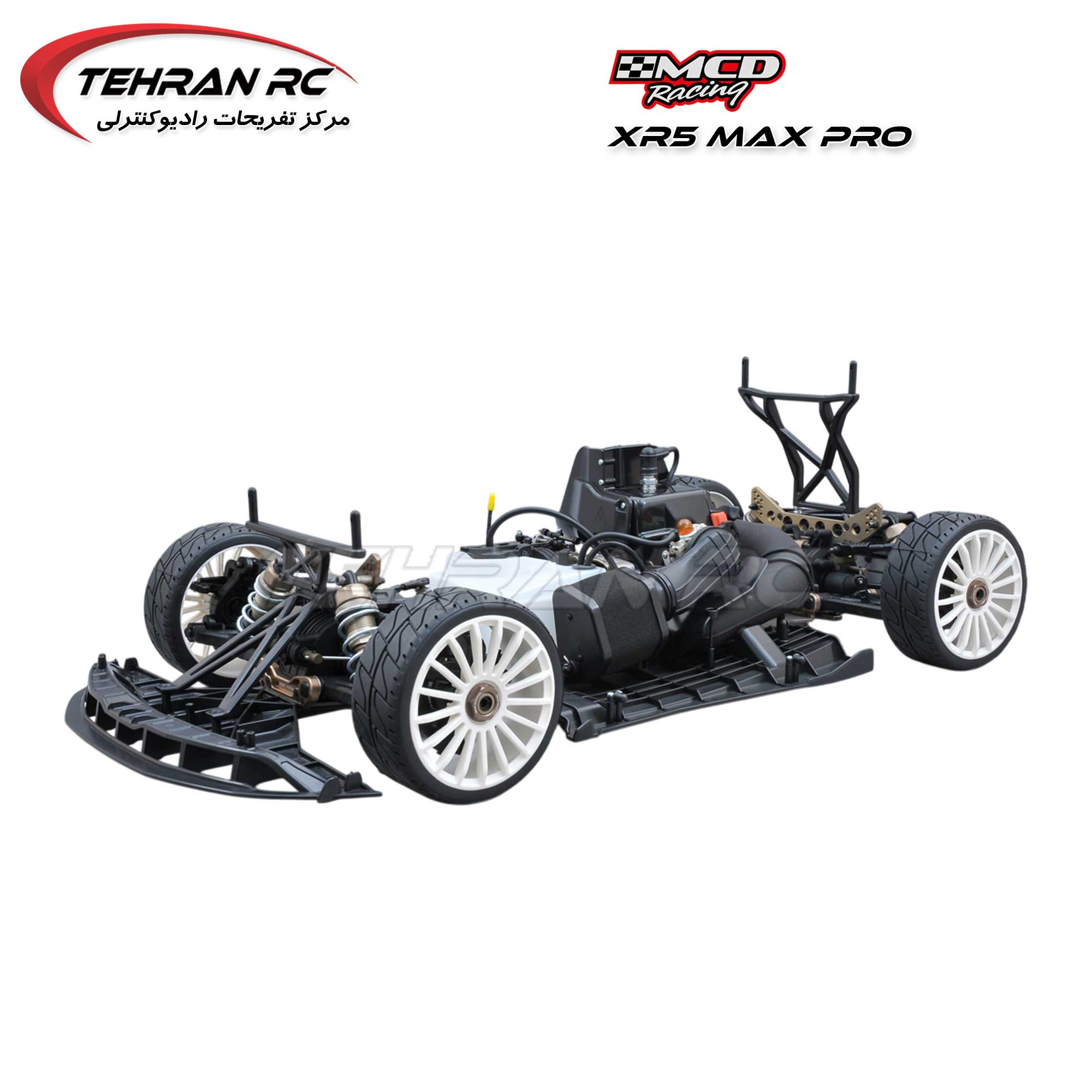

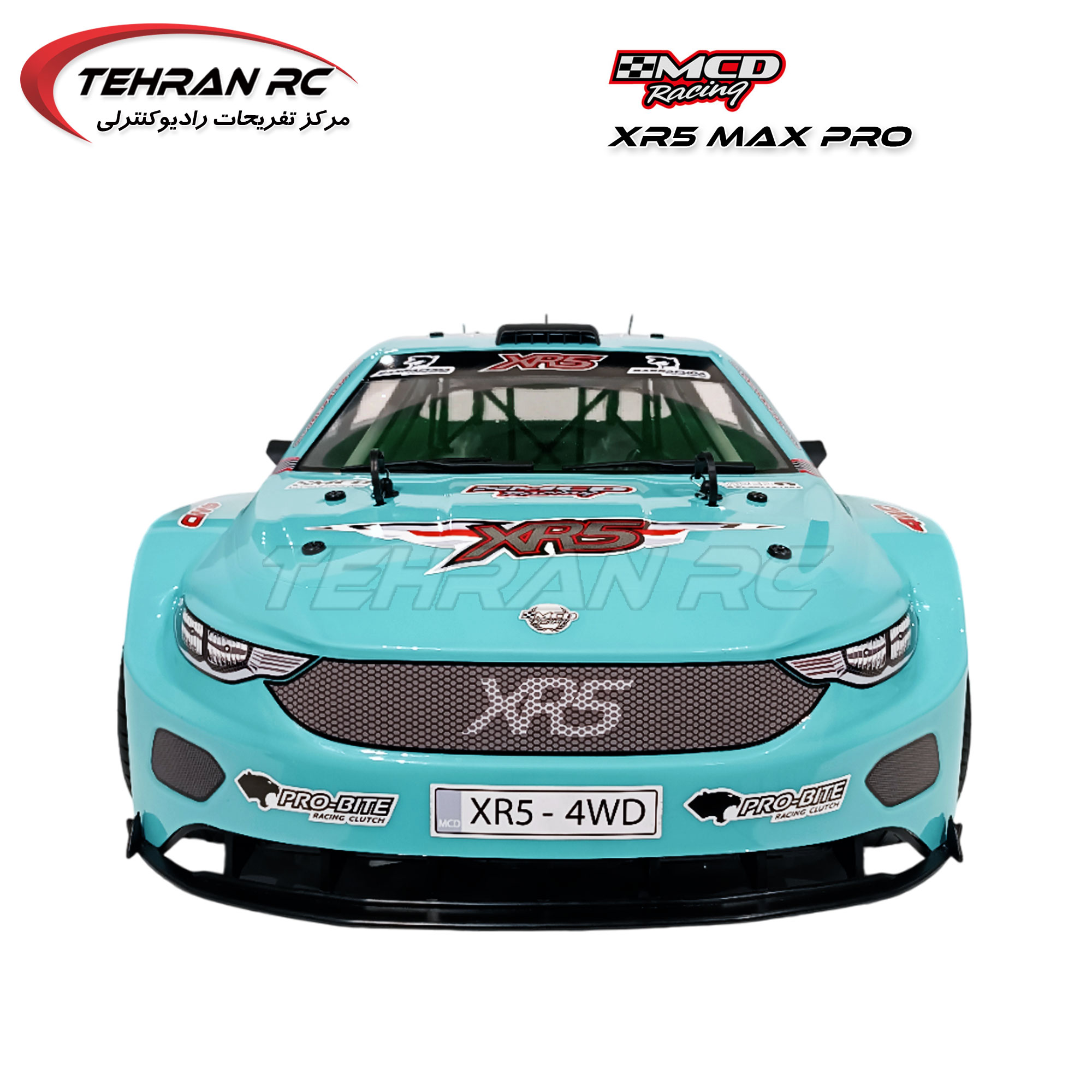

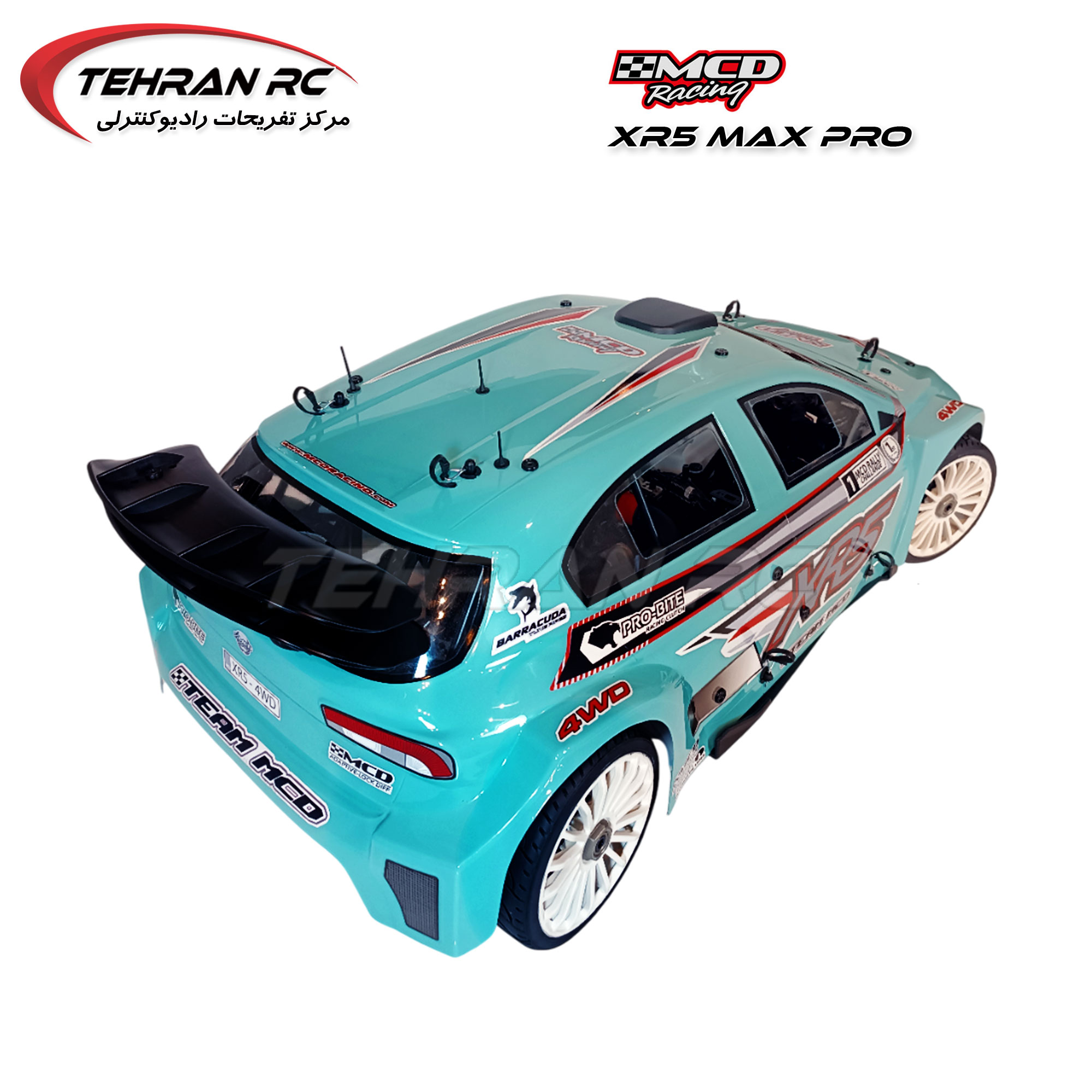

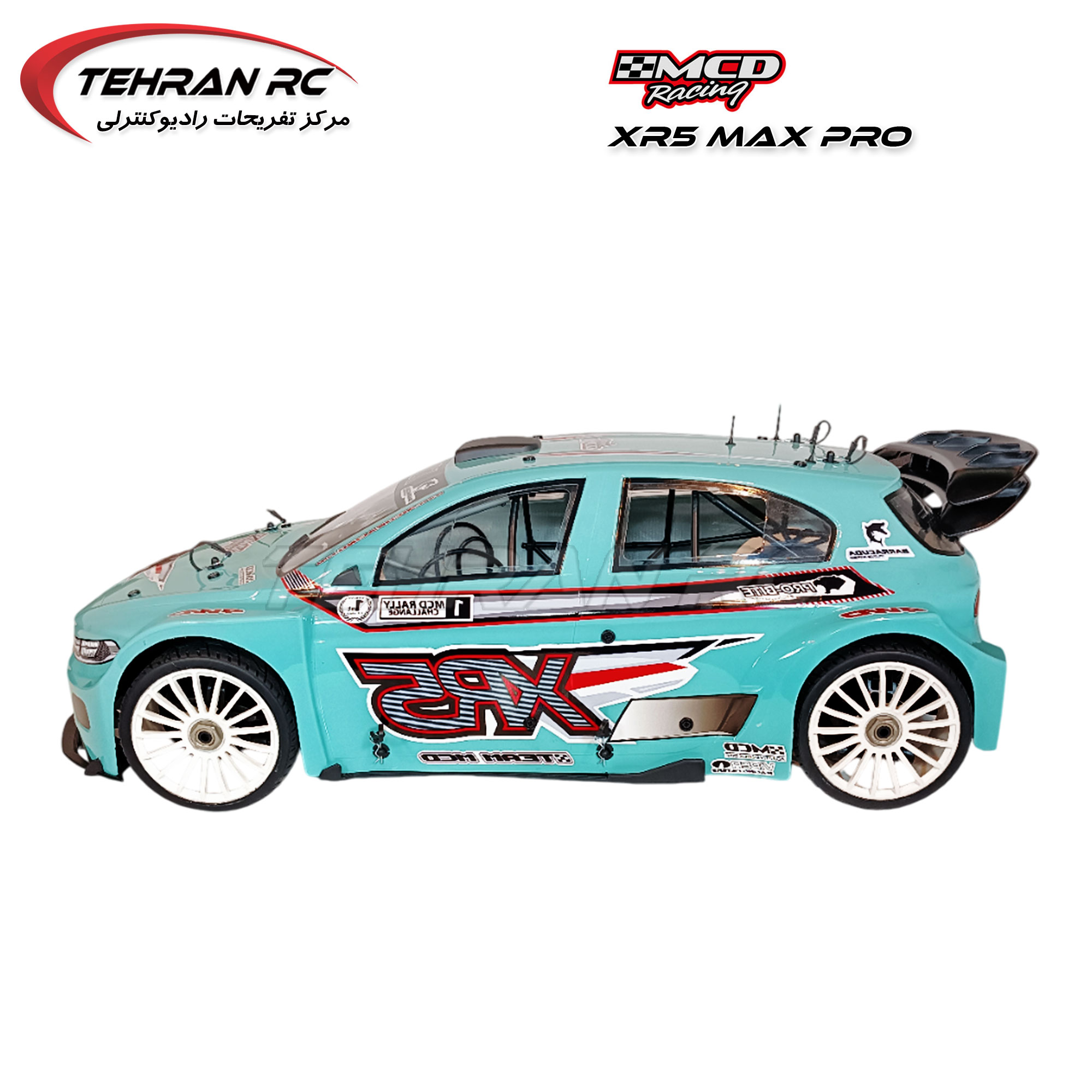

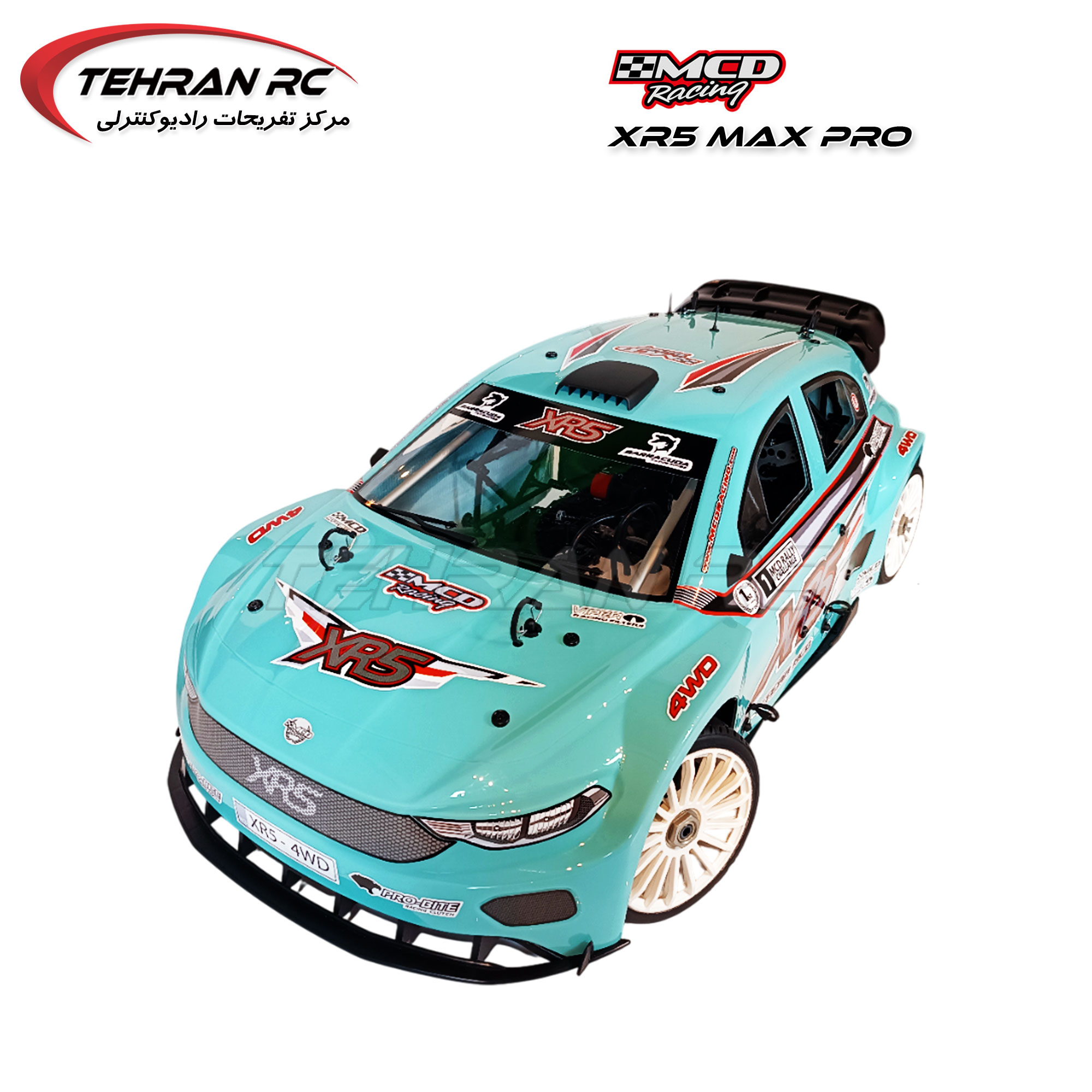

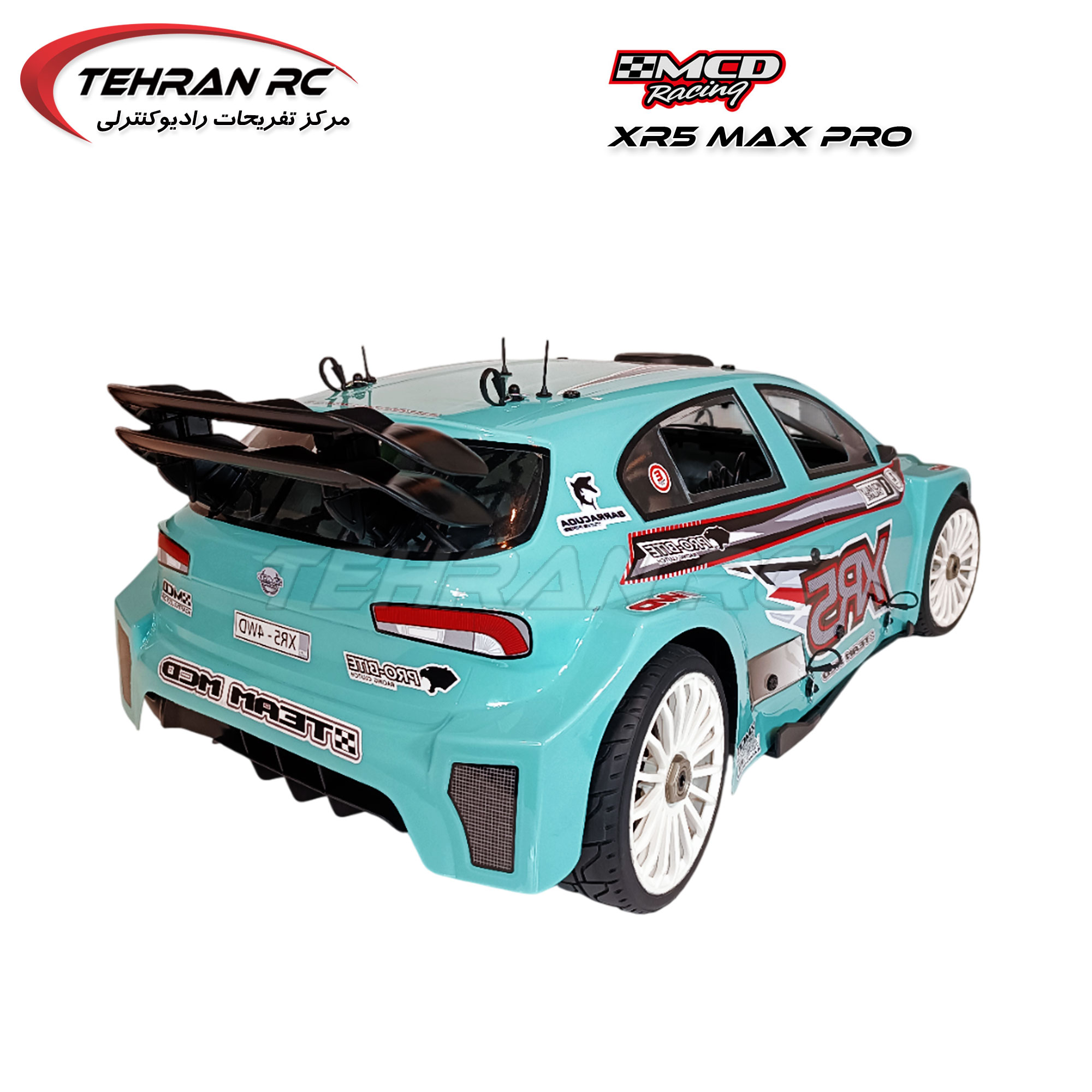

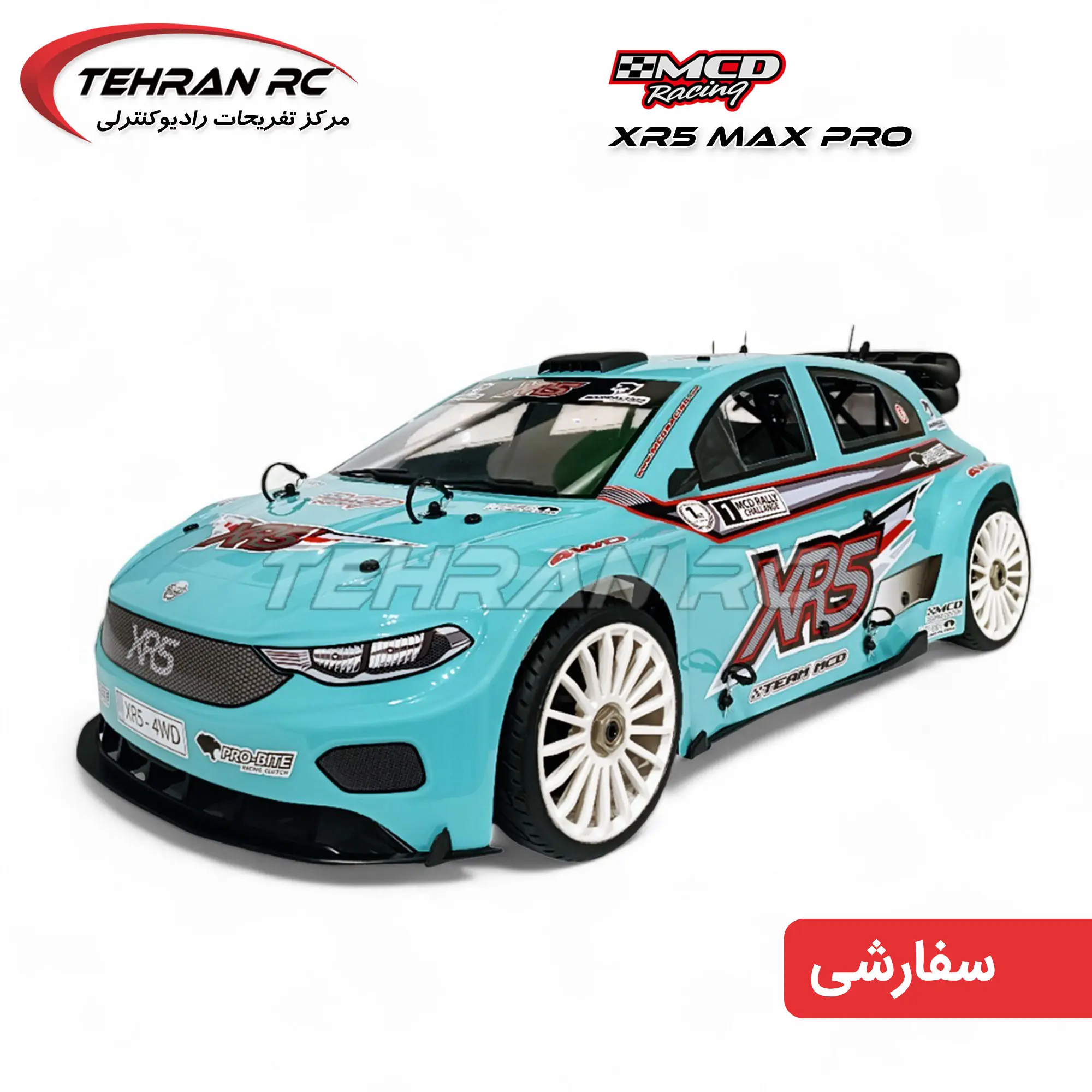

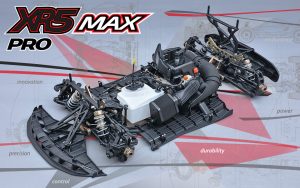

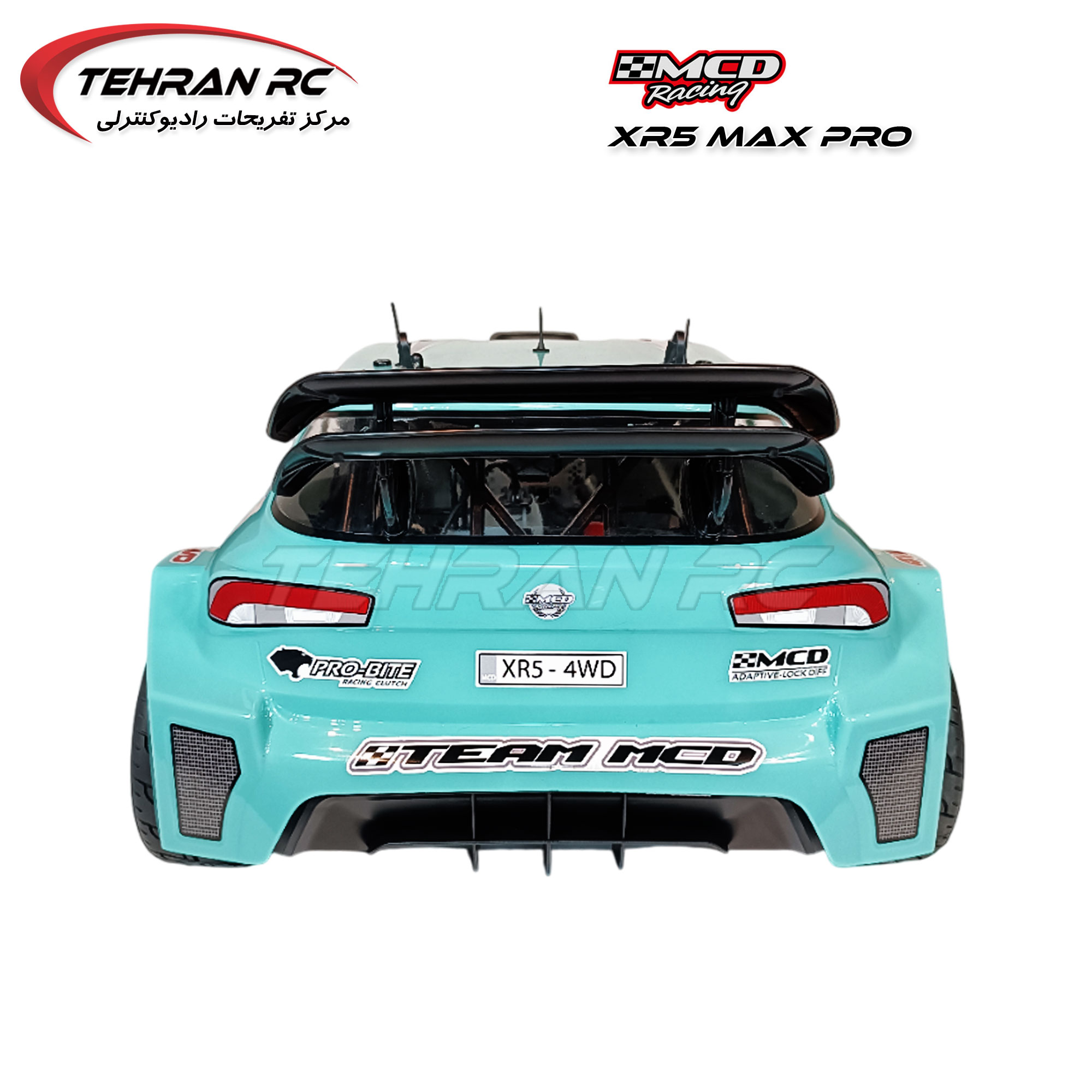

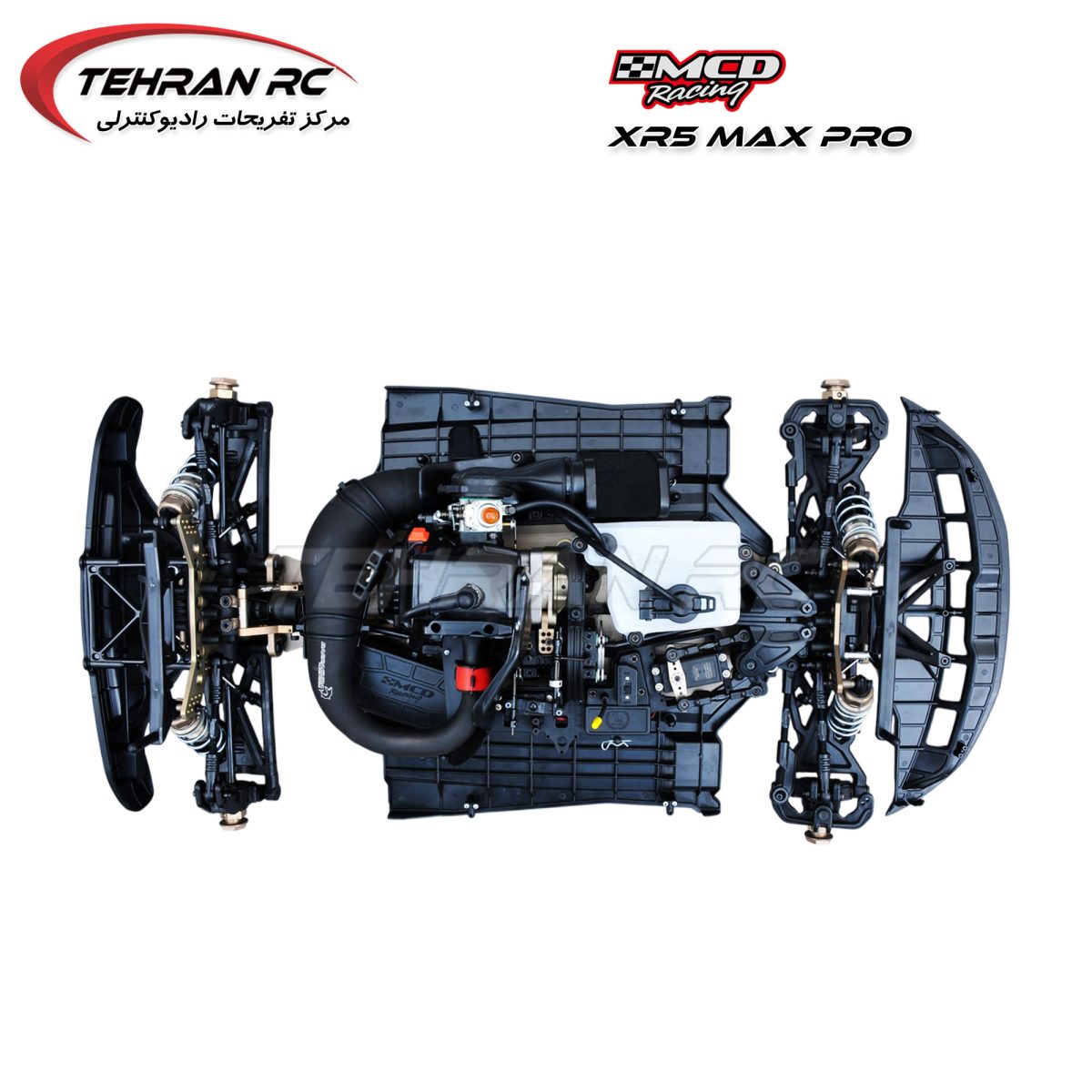

ماشین کنترلی رالی بنزینی – مدل MCD XR5 MAX Pro
269,710,000 تومان 0%
| برند : |
MCD Racing |
|---|---|
| کلاس : |
OnRoad |
| مقیاس : |
1/5 |
| موتور : |
سفارشی |
| نوع موتور : |
بنزینی |
| سرعت نهایی : |
90+ کیلومتر بر ساعت |
| سیستم انتقال قدرت : |
دو دیفرانسیل |
| رادیو کنترل : |
سفارشی |
| رنگ : |
سفارشی |
این محصول به صورت سفارشی بوده و می توانید آن را پیش خرید کنید
ویدیو
آیتم های موجود در جعبه ماشین :
- ماشین
- بدنه
آیتم های مورد نیاز برای راه اندازی ماشین :
- موتور
- سروو گاز
- سروو فرمان
- باطری گیرنده
- شارژر
- راریو کنترل
- کلید on/off
- روغن موتور دوزمانه
Features
- Top of the line competition Rally Cross

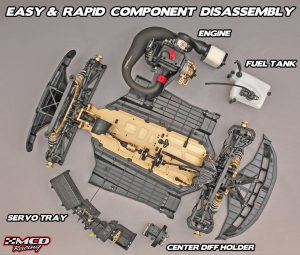

- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts

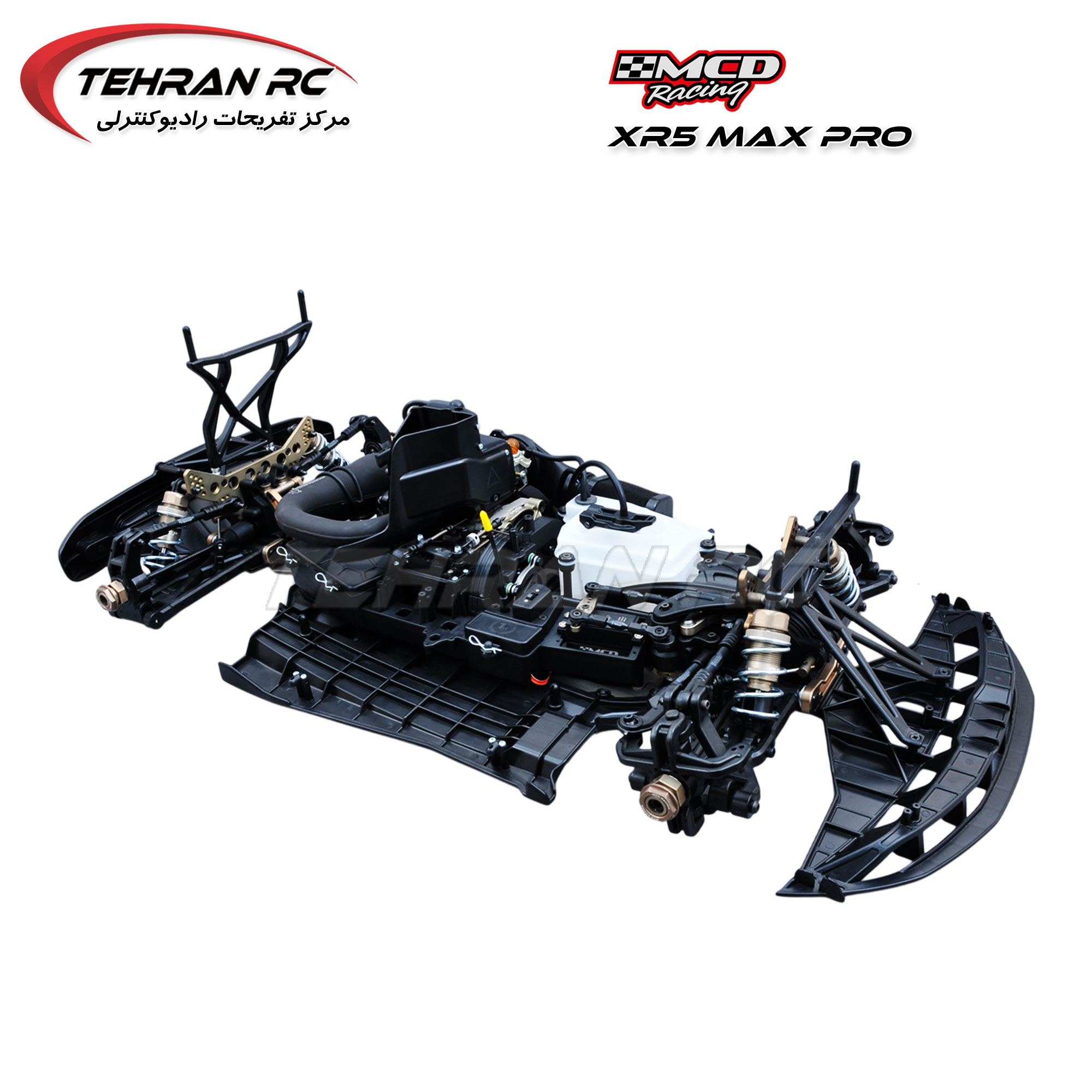

- Fifth generation MCD chassis & suspension arms

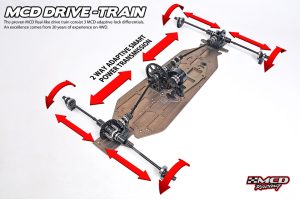

- Sophisticated full-time 4WD Shaft Driven mechanics
- Ultra strengthened chrome drive shaft and axle

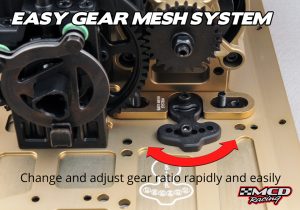

- Easy gear mesh system

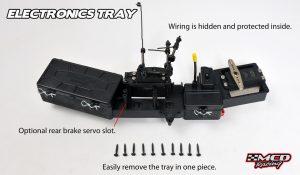

- Easily removable one-piece electronics tray

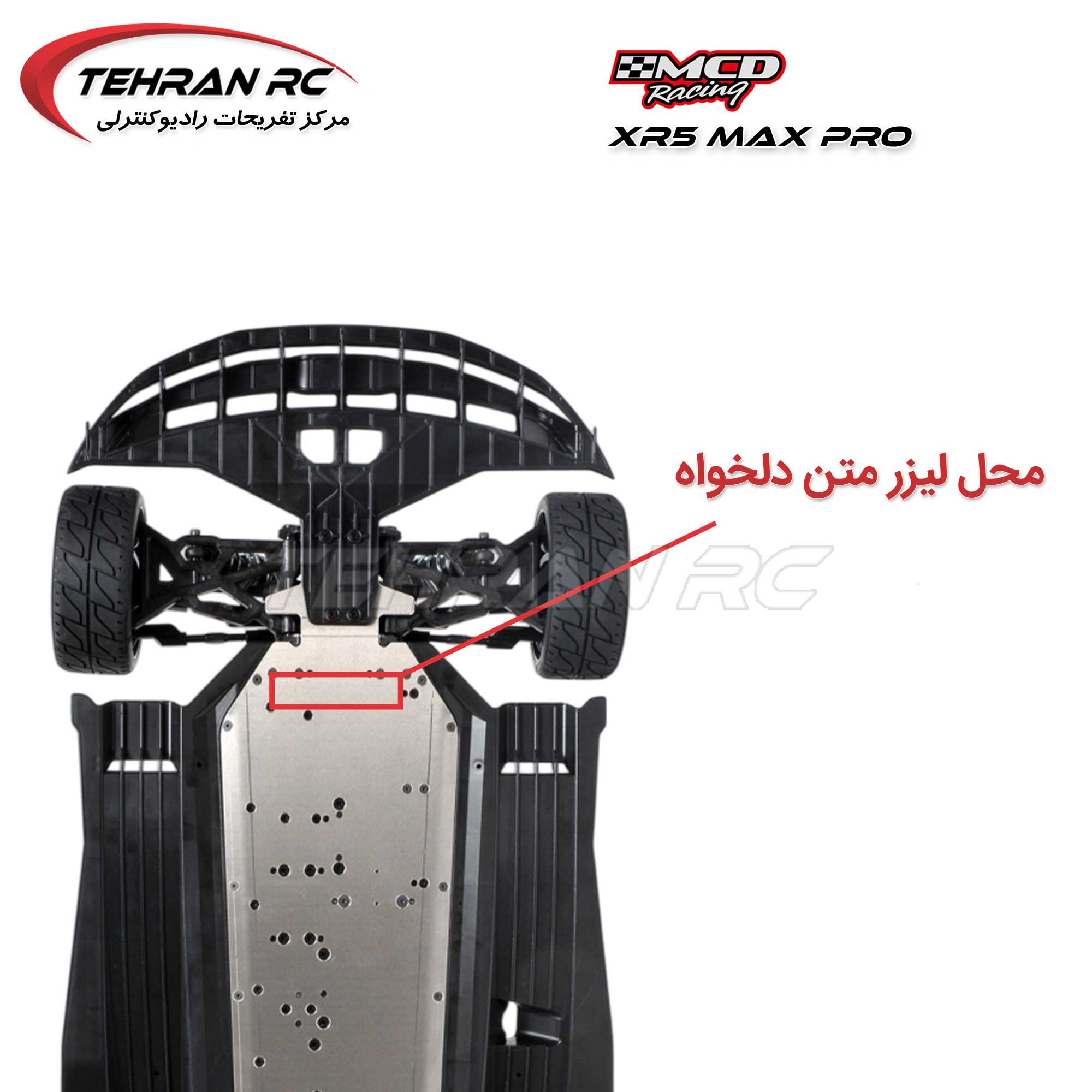

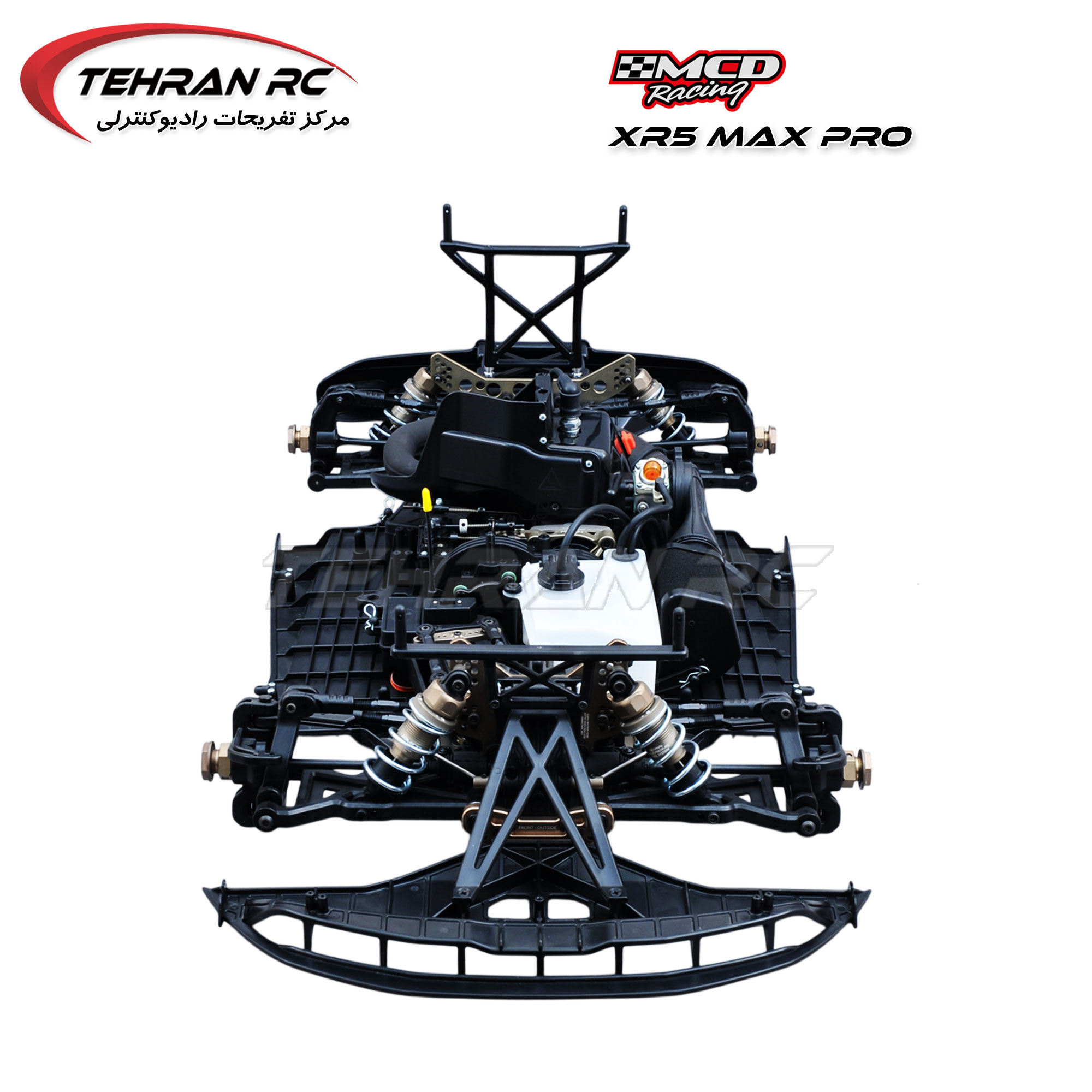

- CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis

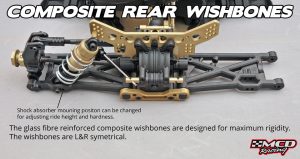

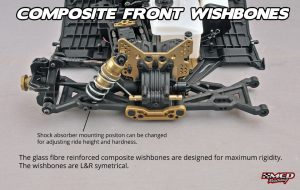

- Strengthened long wishbones

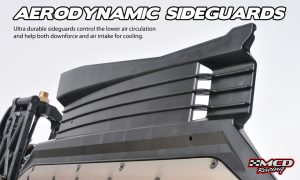

- Solid and durable aerodynamic side guards

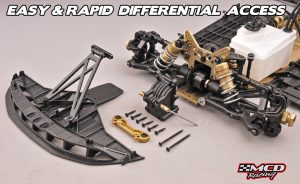

- Easily removable composite front, rear and center diff houses

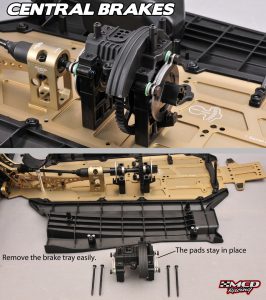

- Ultra durable front and rear adjustable brake system

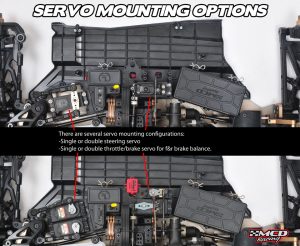

- Rear-brake only servo slot
- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes

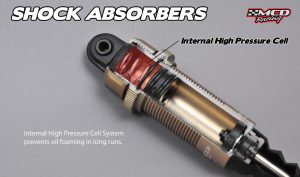

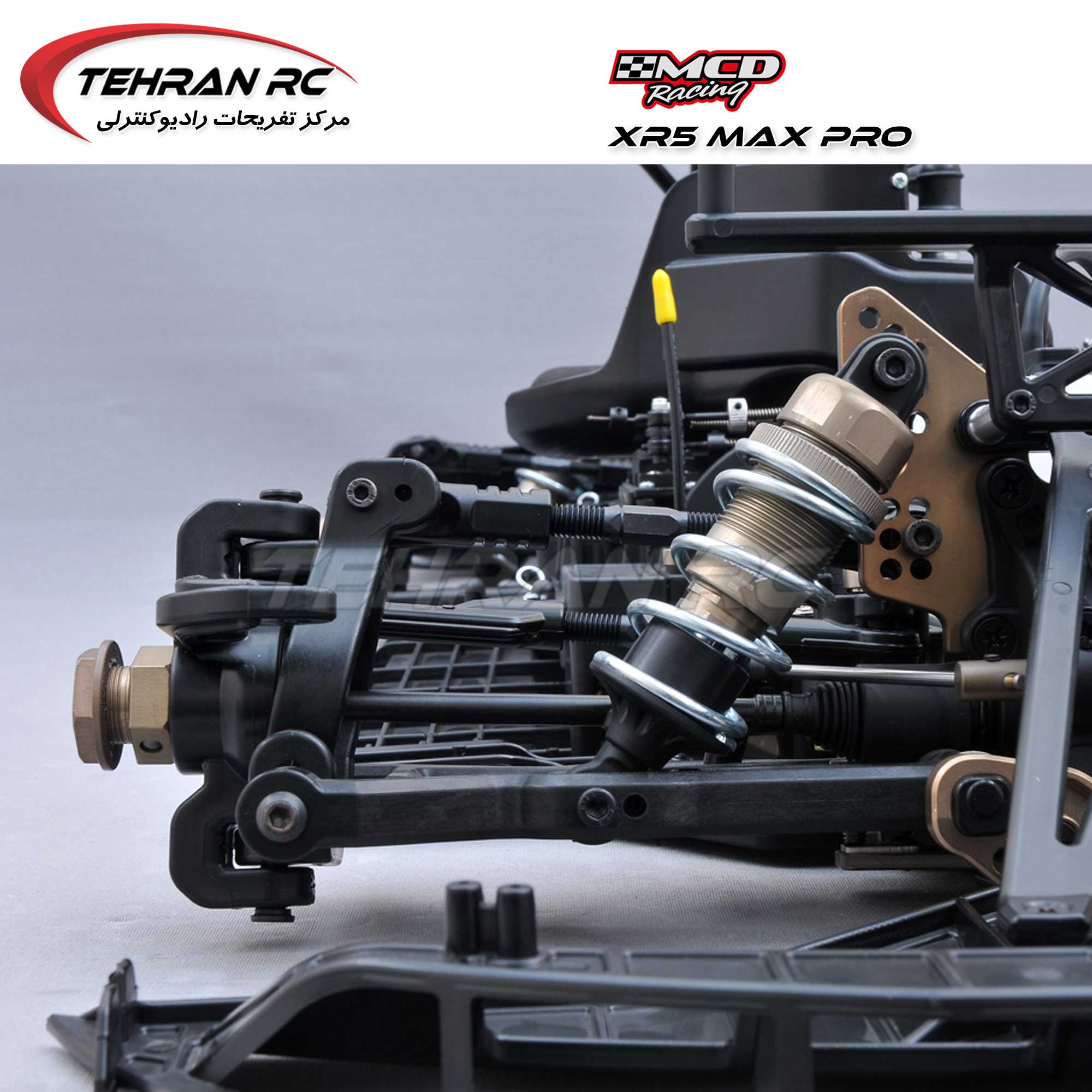

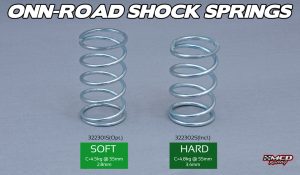

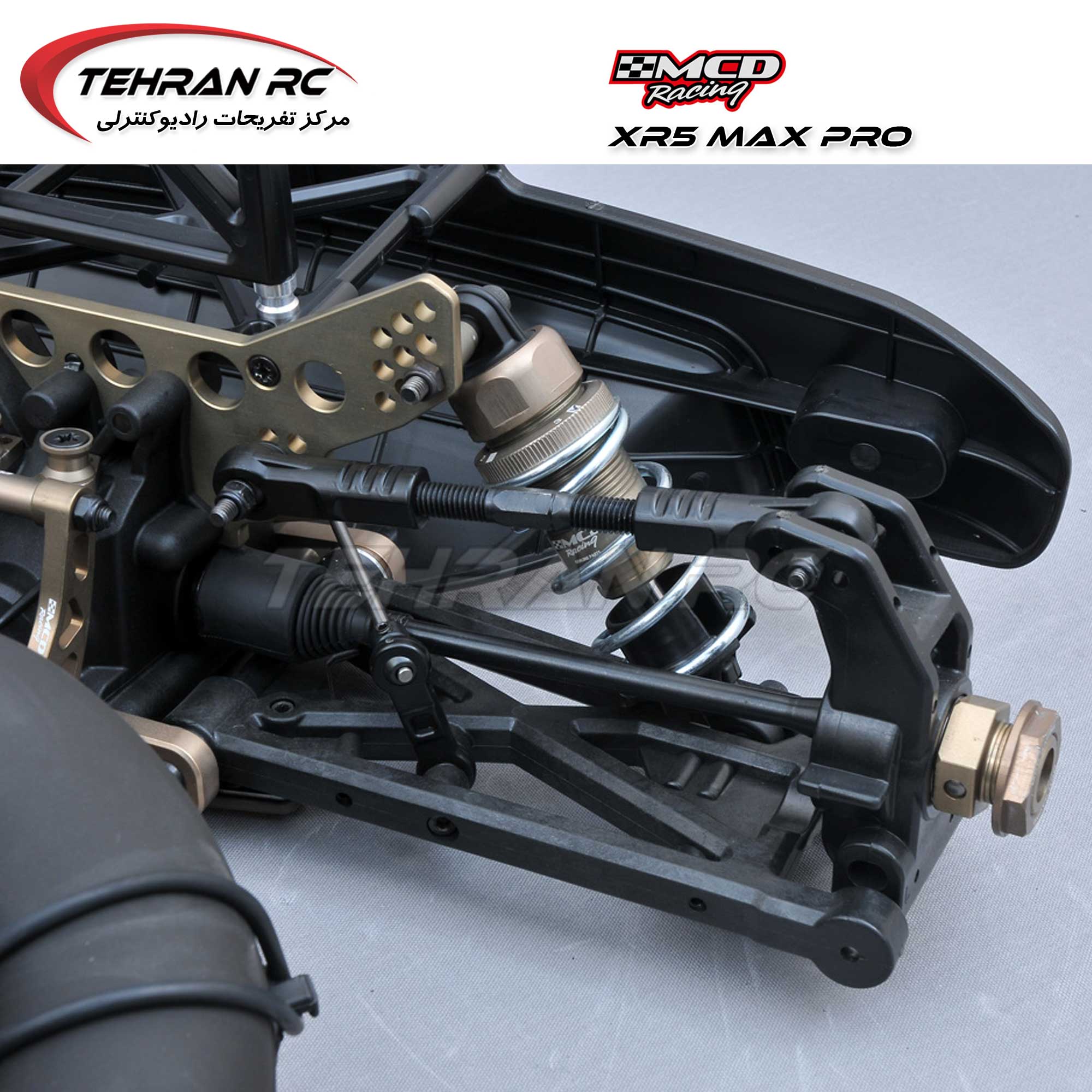

- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Ultra hardened steel transmission gears

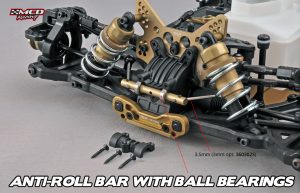

- Double ball bearing anti-roll bars
- No-Stress-Effect polyamide front bumper and rear diffuser
- Ultra durable steel ball cup-joints

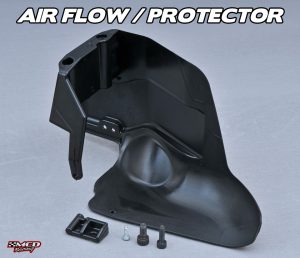

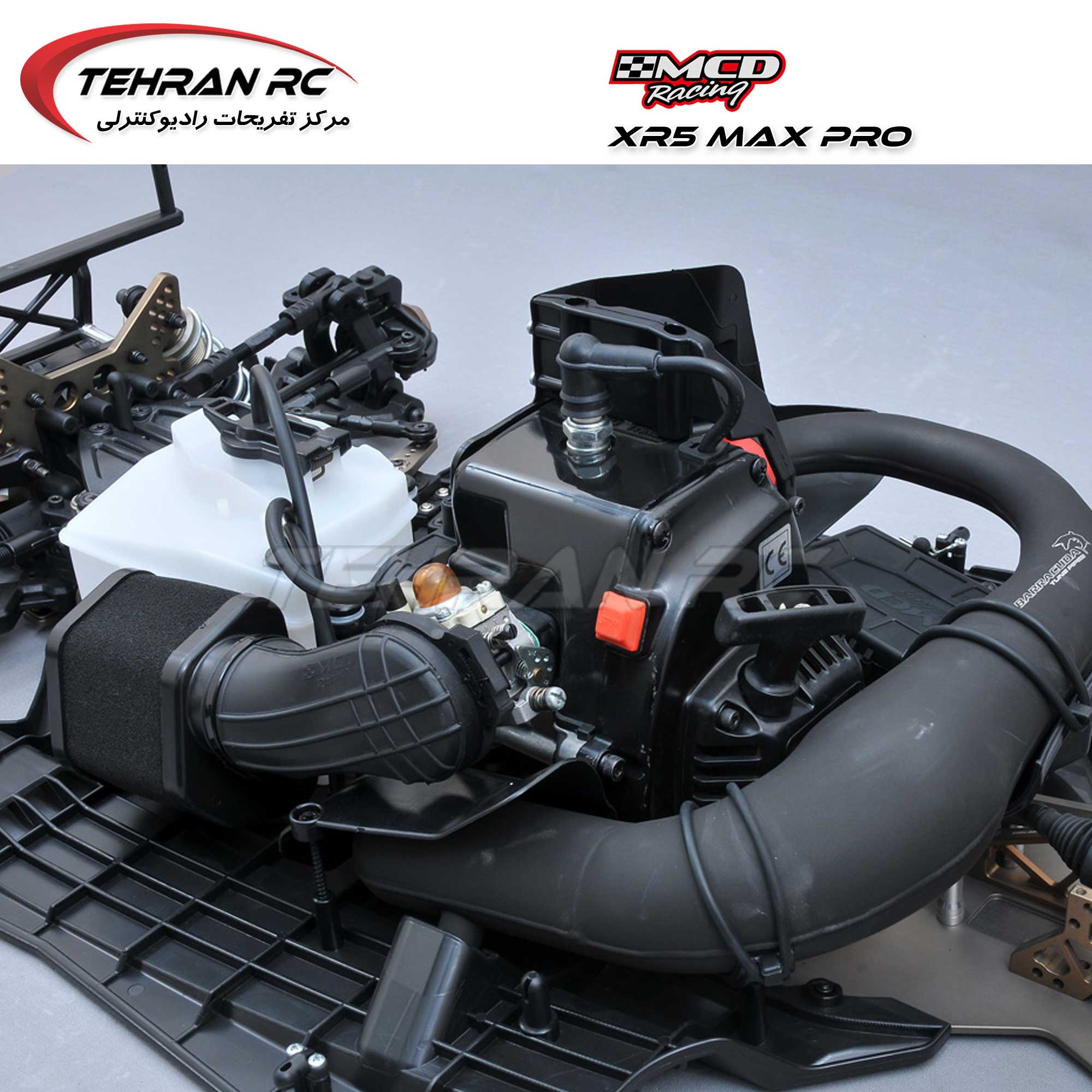

- Super-Cooling V5 air ventilation system

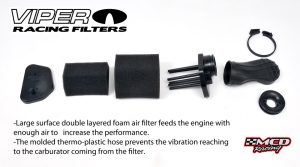

- Viper Racing Air Filters with dual layer foam and thermoplastic hose

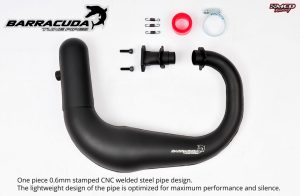

- Barracuda G performance exhaust
- Adjustable CG
- Adjustable weight distribution

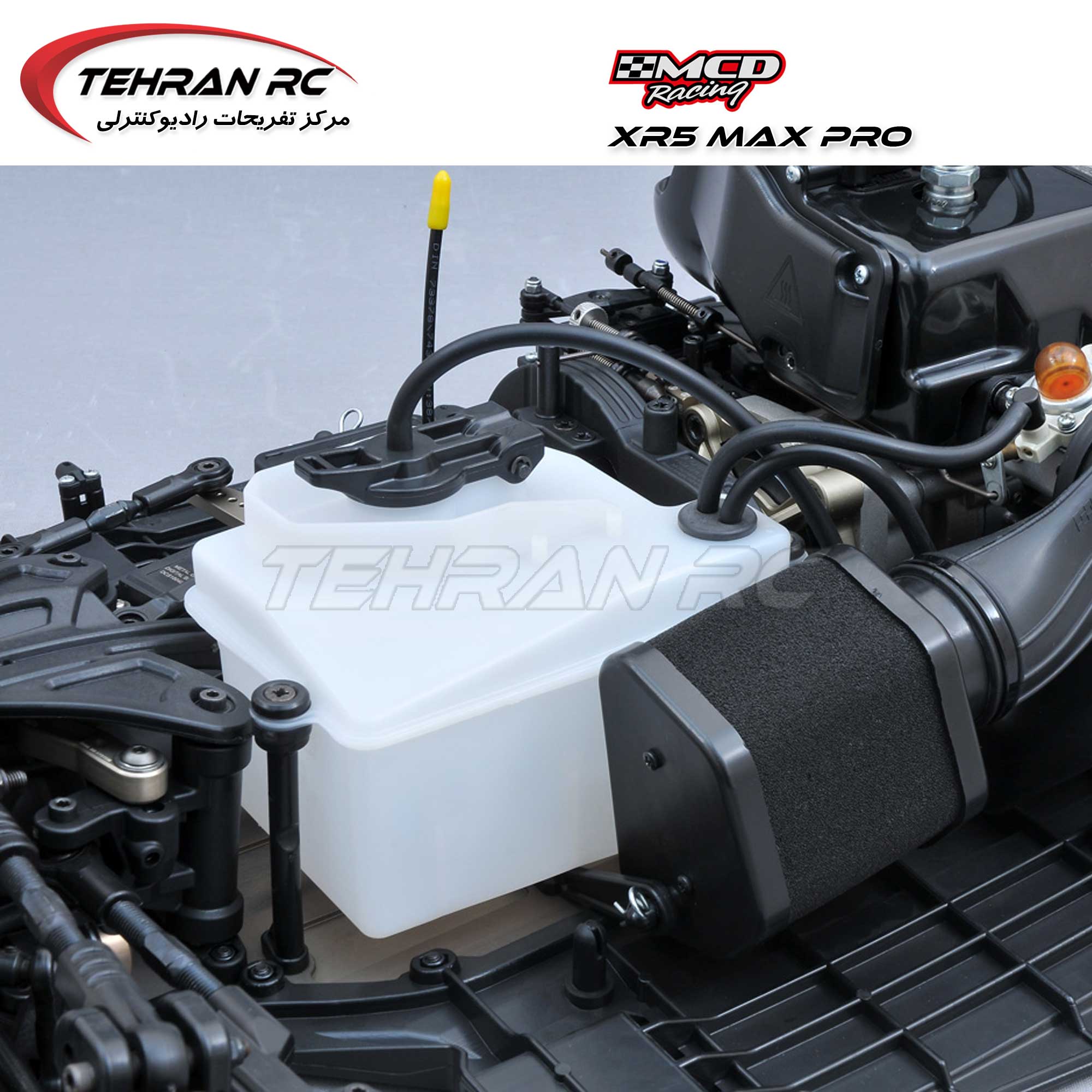

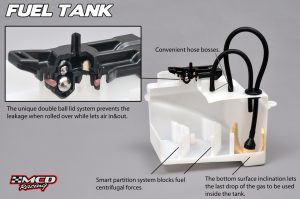

- Molded fuel tank with shake absorbing separators

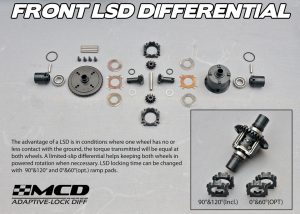

- Front 90° 120° selectable ramp self locking diffs

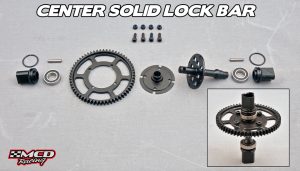

- Center solid lock bar

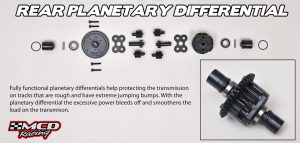

- Rear planetary differential

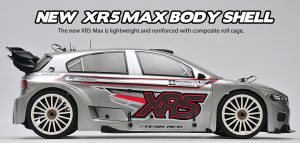

- Fully composite body accessories
- Drive shaft boot
جدول مشخصات
ON-ROAD COMPARISON CHART
| ON-ROAD COMPARISON CHART | ||||
| Part (Order Code) | Competition | Pro | FT-R | Ultimate |
| Short Chassis | Long Chassis (MAX) | |||
| Chassis | 5083 Alloy - Short | 7075 Alloy - CNC Machined - Anodized (400103A) | 7075 Alloy - CNC Machined - Anodized (400103A) | 7077 Alloy - CNC Machined - Anodized (400103A) |
| Barracuda G Performance Exaust Set (750601X) | OPT | STD | STD | STD |
| Clutch Bell Carrier | Composite | Alloy (415502A) | Alloy (415502A) | Alloy (415502A) |
| Engine Clutch House Alloy (415701A) | OPT | OPT | OPT | STD |

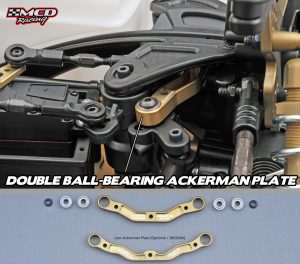

| DBB Ackerman Plate Standard 8mm (380203A) | OPT | STD | STD | STD |
| Front Diff. | Planetary F/R | LSD F/R (200101X) | LSD F/R (200101X) | LSD F/R (200103X) |
| Center Diff. | Solid Lock Bar | Solid Lock Bar | LSD Center (200201X) | LSD Center (200203X) |
| Rear Diff. | Planetary F/R | Planetary F/R | Planetary F/R | LSD F/R (200103X) |
| Diff. Case | Composite | Composite | Composite | Alloy (200402A) |
| Front Diff. House Inner | Composite | Composite | Composite | Alloy (415102A) |
| Rear Diff. House Inner | Composite | Composite | Alloy (415102A) | Alloy (415102A) |
| Center Diff.Holder Set | Composite | Composite | Alloy (415202A) | Alloy (415202A) |
| Front Wishbone Alloy (300104A) | OPT | OPT | STD | STD |

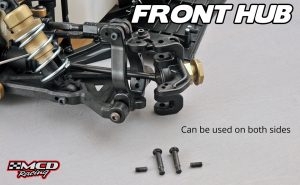

| Front Hub L/R | Composite | Composite | Alloy (300603A) | Alloy (300603A) |

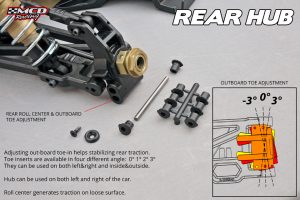

| Rear Hub L/R | Composite | Composite | Alloy (300604A) | Alloy (300604A) |

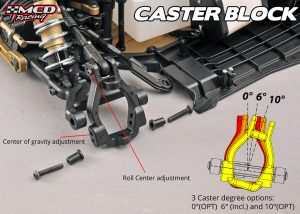

| L/R Caster Block | Composite(6°) | Composite(6°) | 0° Alloy (300704A) | 0°, ±4° Alloy (300705X) |
| Pro-Bite Racing Clutch (290101X) | OPT | OPT | OPT | STD |
| Turnbuckle Set | Steel | Steel | Steel | Alloy (301204X) |
| Shock Absorbers | Composite | Alloy (320103X) | Alloy (320103X) | Alloy (320107X) |
| Upper Shock Absorber Joint Cup | Composite | Composite | Composite | Alloy (320502A) |
| Lower Shock Absorber M5 Joint | Composite | Composite | Composite | Alloy (320503A) |
| M8 Upper Wishbone Rose Joint L/R Thread | Composite | Composite | Alloy (340102A) | Alloy (340102A) |
| Servo Saver Upper Arm | Composite | Composite | Composite | Alloy (380102A) & Composite |
| Steering Servo Turnbuckle | Steel | Steel | Steel | Alloy (381002A) |
| Brake Plate | Composite | Composite | Alloy (415302A) | Alloy (415302A) |
| Lay Shaft Carrier | Composite | Alloy (415402A) | Alloy (415402A) | Alloy (415402A) |
| Rear Upper Stiffener Alloy (446201A) | OPT* | OPT* | STD | STD |
| Front Stiffener | Composite | Composite | Composite | Alloy (445102A) |
| Rear Stiffener | Composite | Alloy (445202A) | Alloy (445202A) | Alloy (445202A) |
| Upper Stiffener Alloy | OPT** | OPT** | Alloy (446101A) | Alloy (446101A) |
| Diff.House-Stiffener Spacer | Composite | Composite | Alloy (460102A) | Alloy (460102A) |
| Carburetor / AirFilter Venturi | Composite | Composite | Alloy (725302A) | Alloy (725302A) |
| Engine Insulator Alloy G230-G290 (726002A) | OPT | OPT | OPT | STD |
| Radio/Servo Tray - Hydraulic Brake Compatible (930301X) | OPT | OPT | OPT | STD |
| Brake Disc | Spring Steel | Spring Steel | Light Weight ABS (260102S) | Light Weight ABS (260102S) |
| Front Wishbone Holder Set | Composite | Alloy (300203A) | Alloy (300203A) | Alloy (300203A) |
| Rear Wishbone Holder Set | Composite | Alloy (300303A) | Alloy (300303A) | Alloy (300303A) |
| Anti-Roll Bar Set F/R 3.5mm (360101X) | OPT | STD | STD | STD |
| Front Tower | Alloy 5mm | Alloy 5mm (430303A) | Alloy 5mm (430303A) | Alloy 5mm (430303A) |
| Rear Tower | Alloy 5mm | Alloy 5mm (430403A) | Alloy 5mm (430403A) | Alloy 5mm (430403A) |
| *Required for assembly: 446201A, 415402A and 415302A | ||||
| **Required for assembly: 446101A and 446301A | ||||
