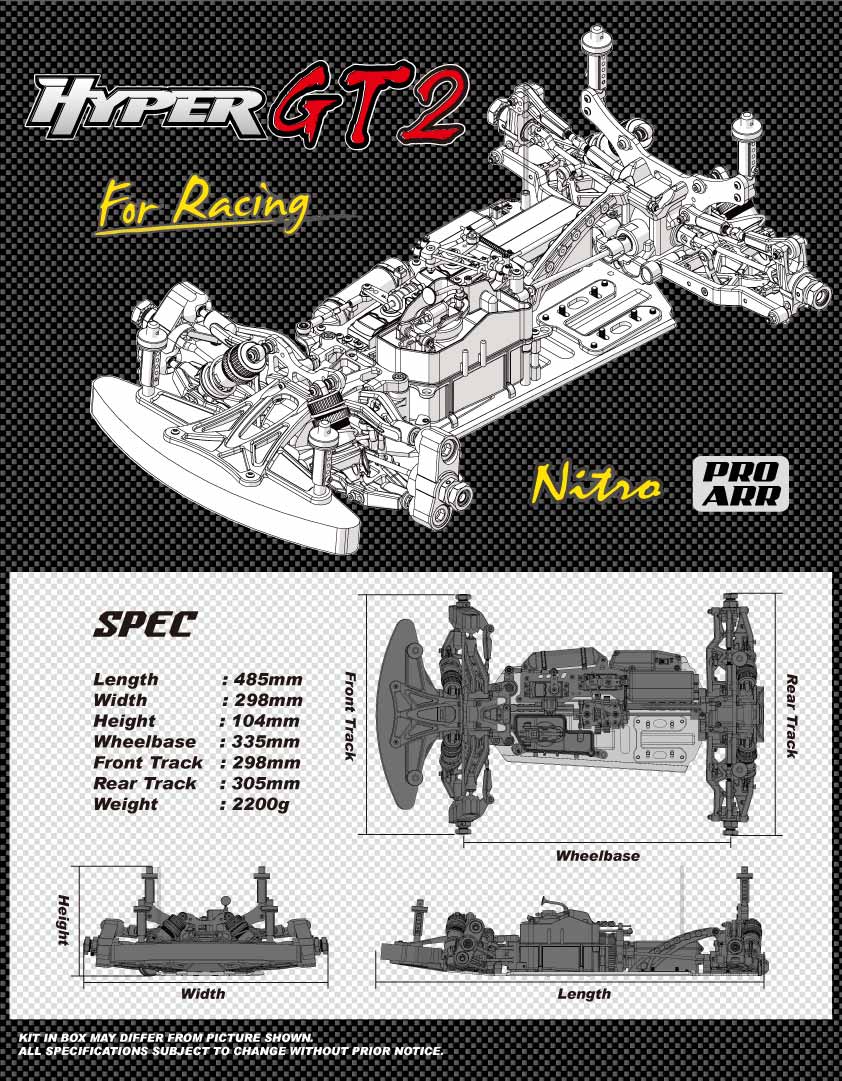

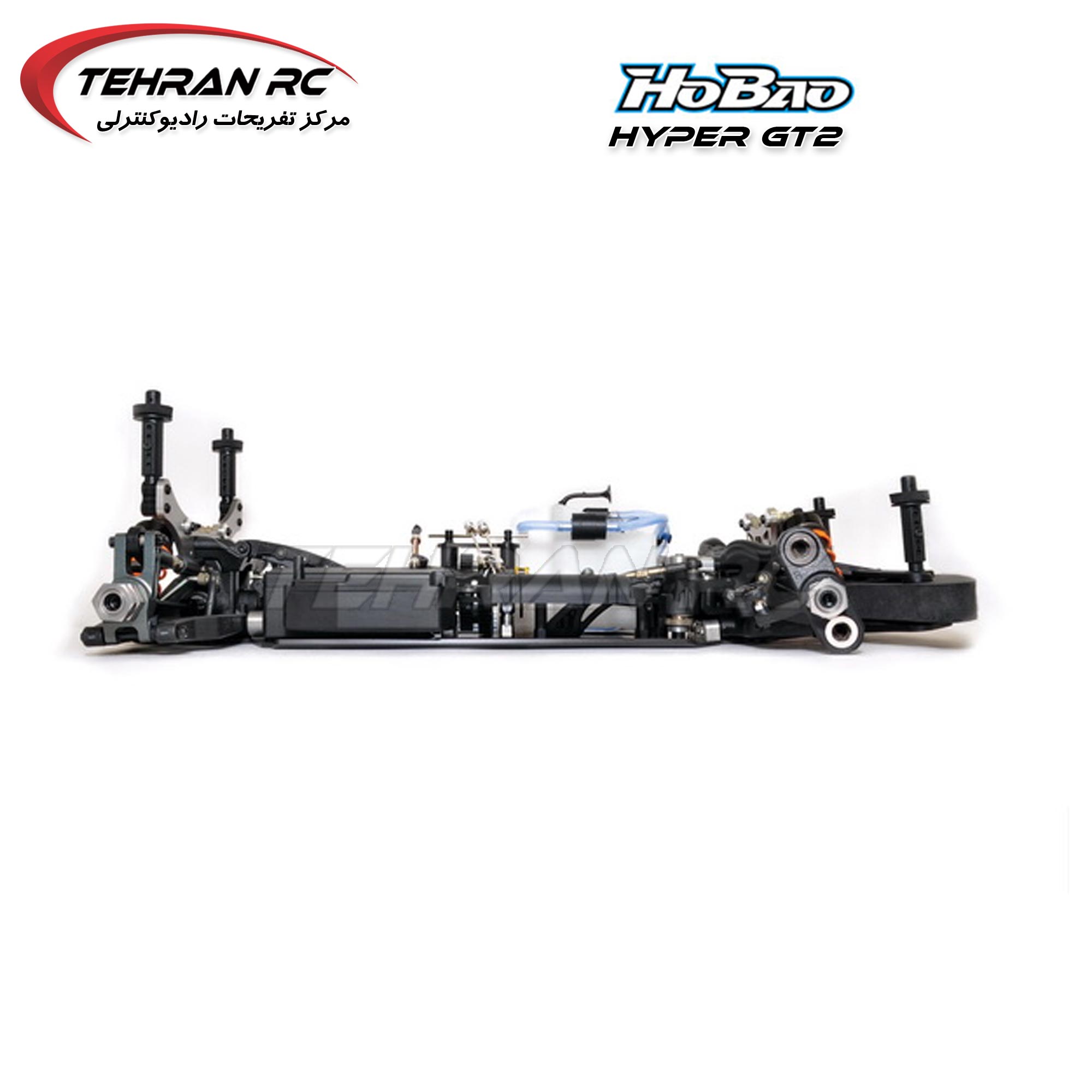

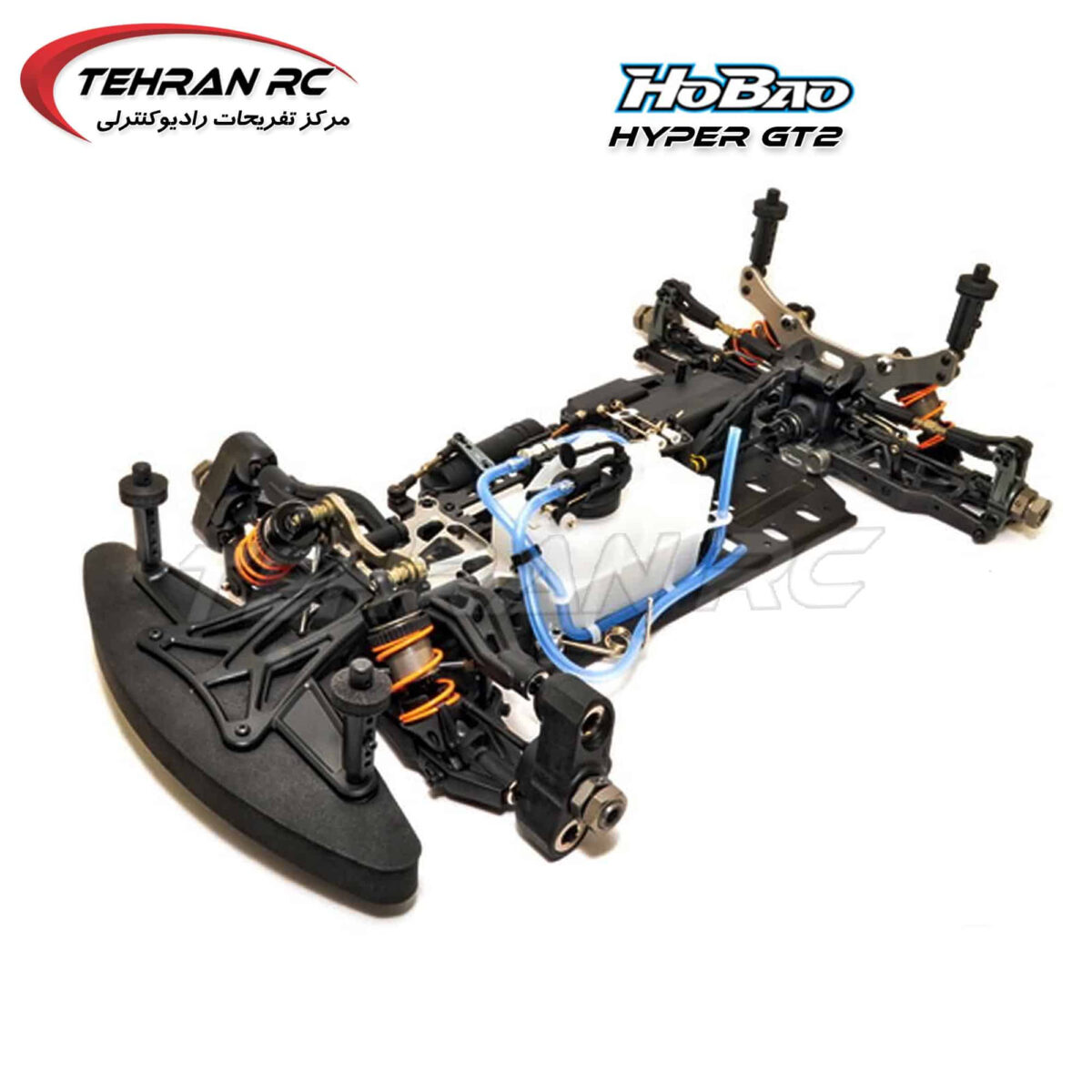

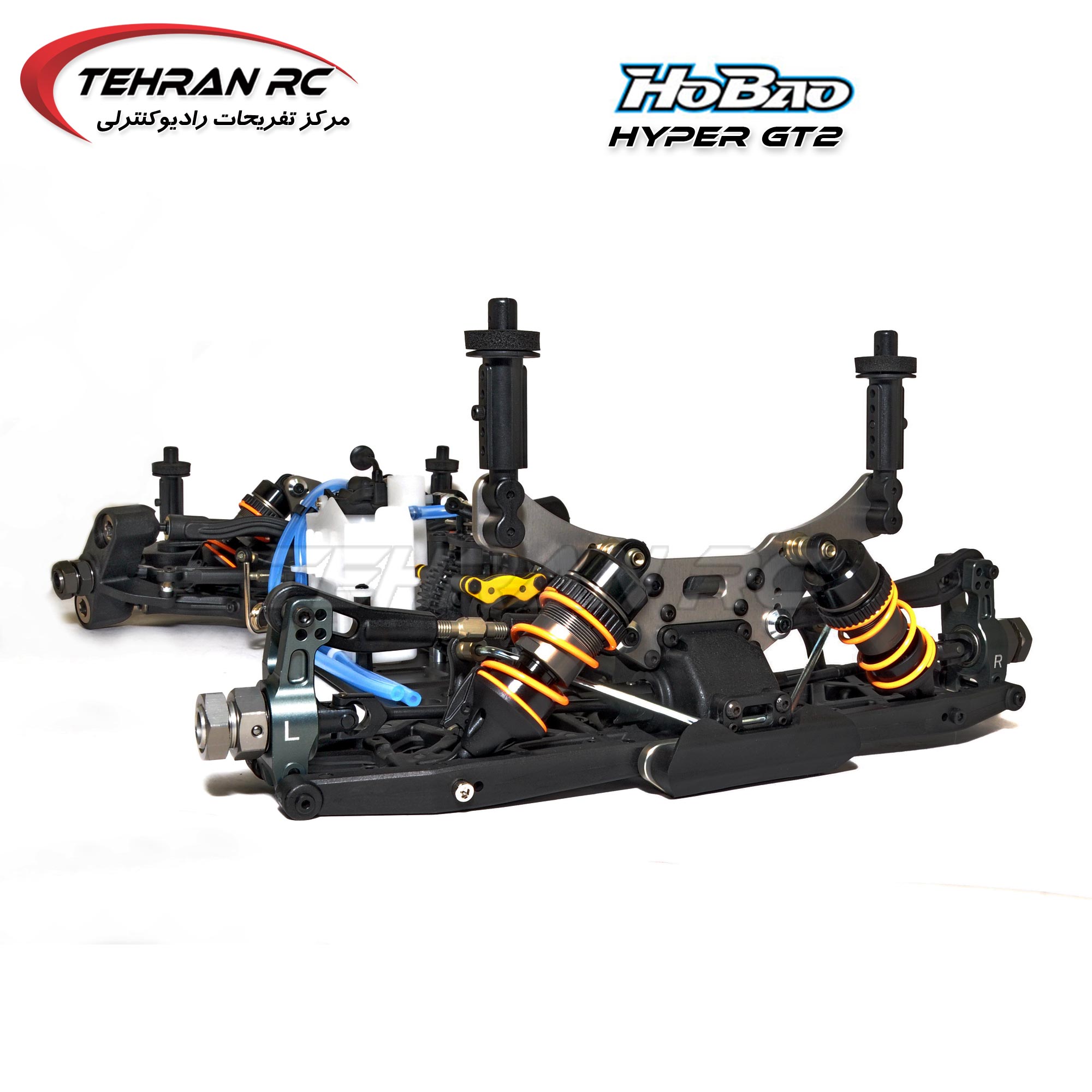

کیت مسابقاتی آنرود – مدل Hyper GT2

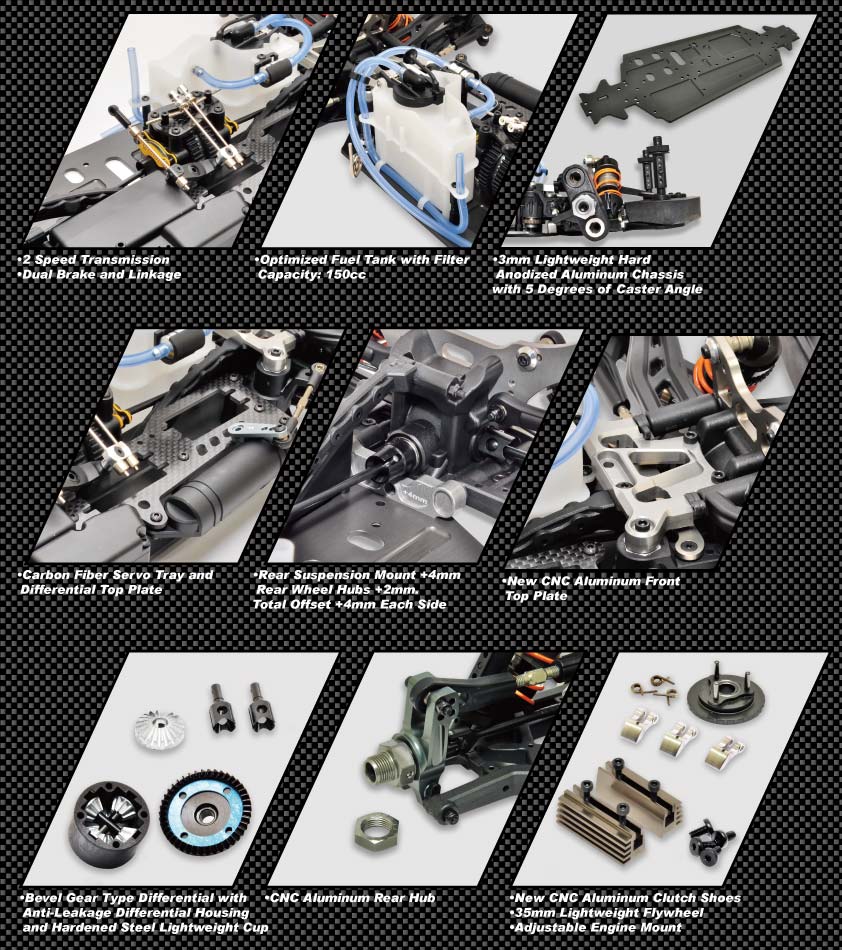

Features:

• CNC Aluminum 7075 and Hard Anodized Parts:
• All Turnbuckles/ All Balls/ Pivot Balls /Rear Hubs /Steering Racks

Chassis:

• 3mm lightweight hard anodized aluminum
• +5 degrees of caster angle

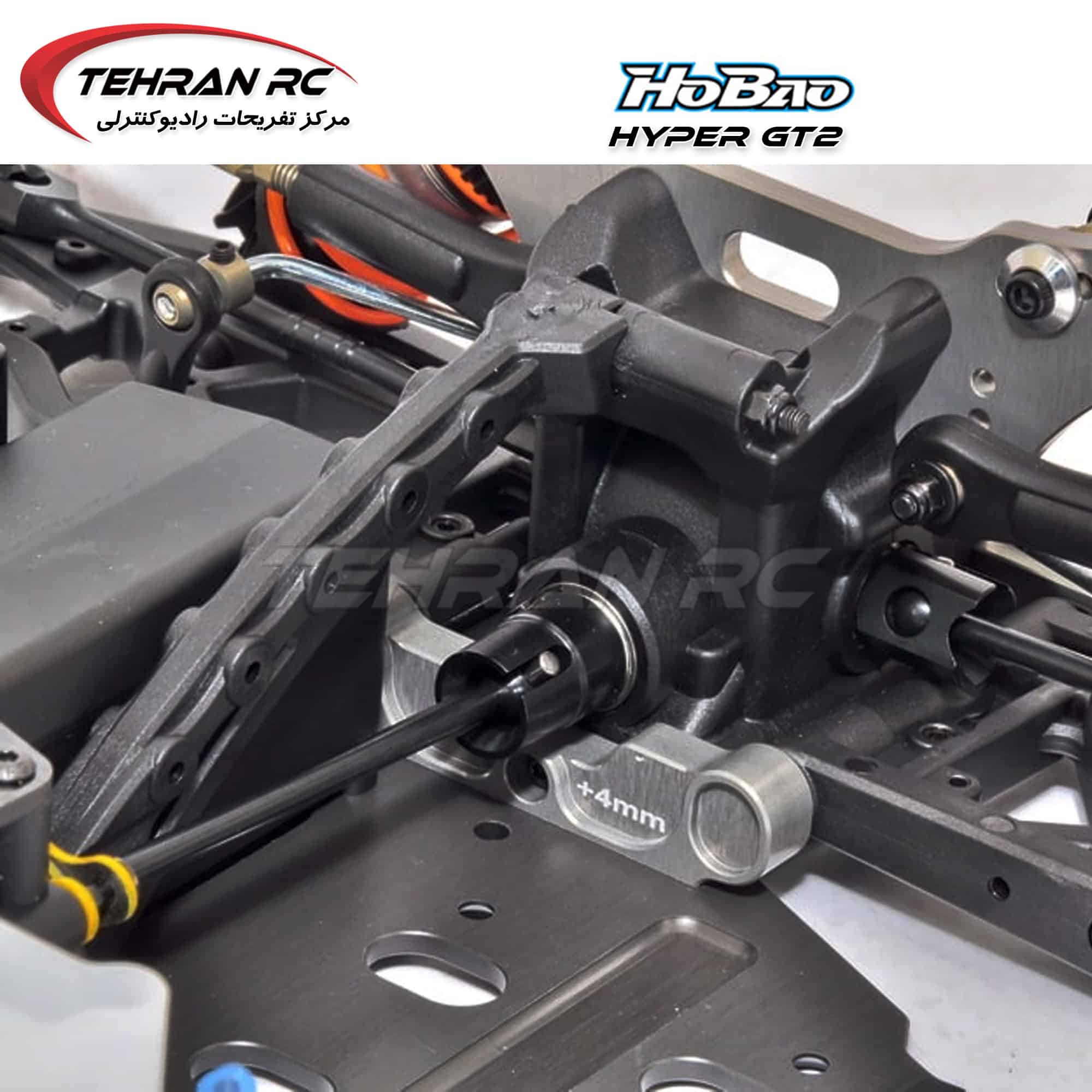

• Rear Suspension Mount length +4mm, Rear Wheel Hubs length +2mm. Offset total +4mm each side, more stable at high speed.
• Front Suspension Mount has more holes for lower arms to change the roll centre setup.

Drive:

• 4WD drivetrain
• Hardened steel center driveshaft
• Front and rear hardened steel universal driveshaft
• 17mm rear wheels hub (Length +2mm)
• Anti-loose wheel nut
• Hardened steel drive cup

Differential:

• Bevel gear type
• Front differential filled with #500K silicone oil
• Rear differential filled with #50K silicone oil
• New anti-leakage differential housing
• Hardened steel lightweight cup

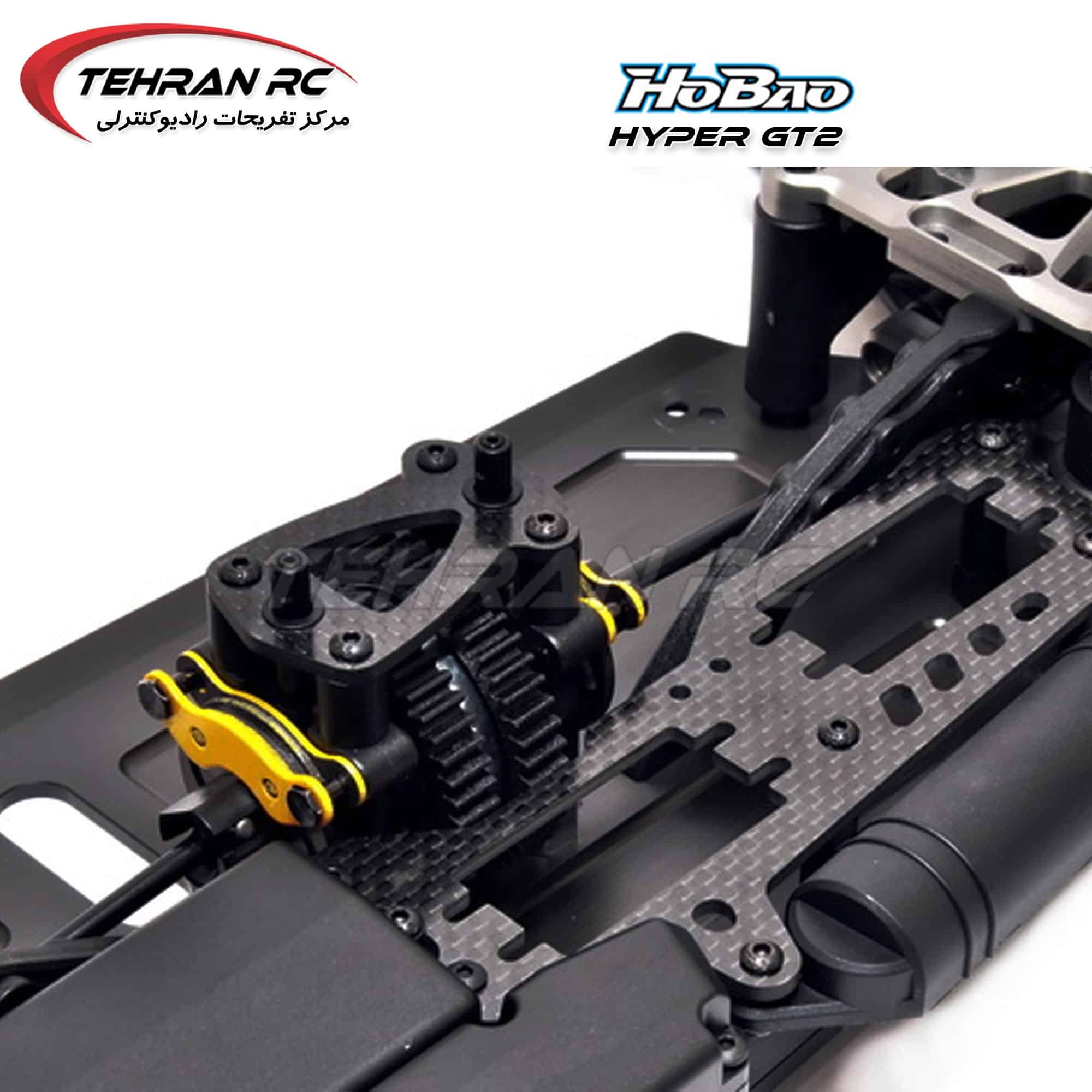

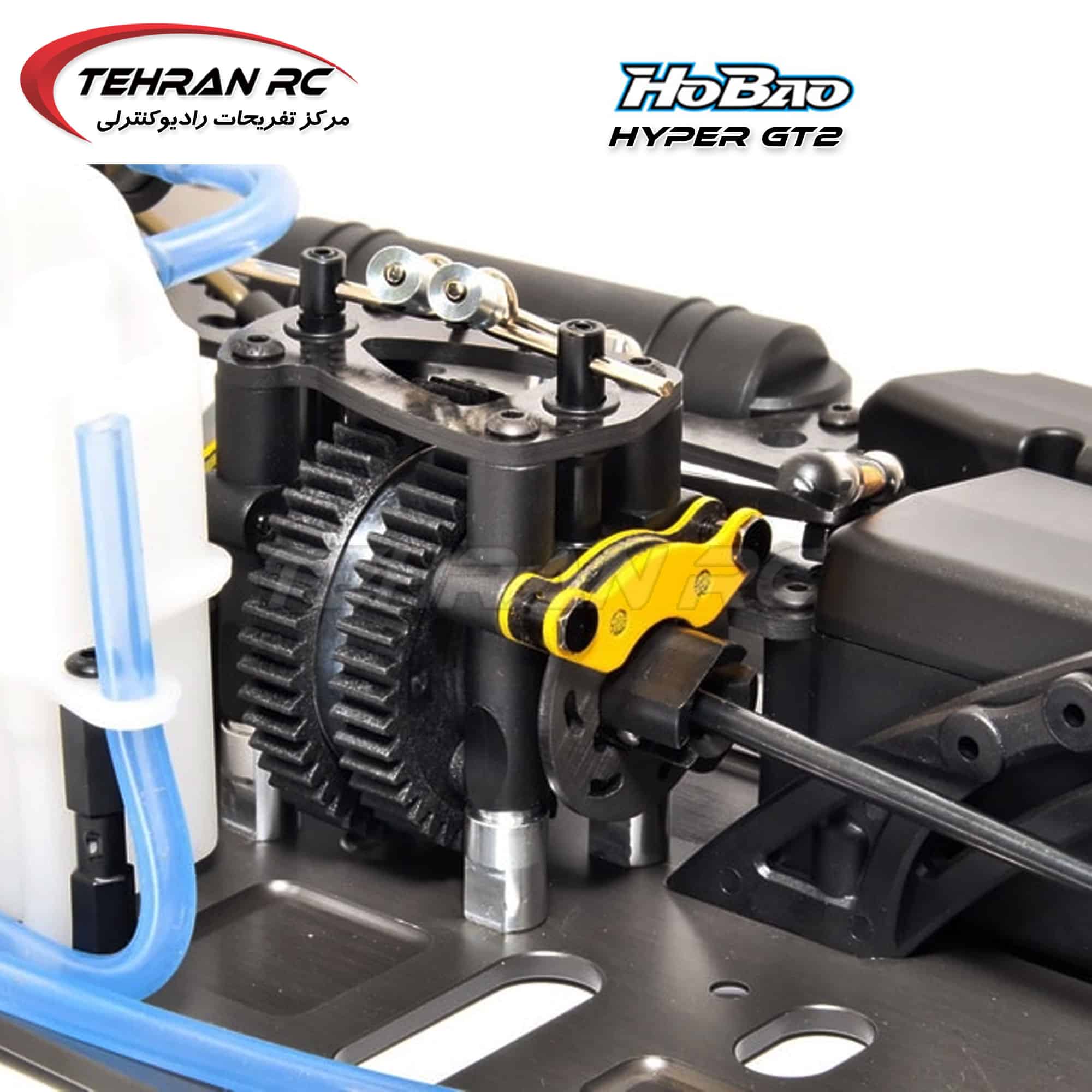

• 2 speed transmission:
• 44T and 48T spur gear (MOD 1, plastic gear)
• 15T/ 19T 2-Speed pinion gear (MOD 1, hardened steel gear)

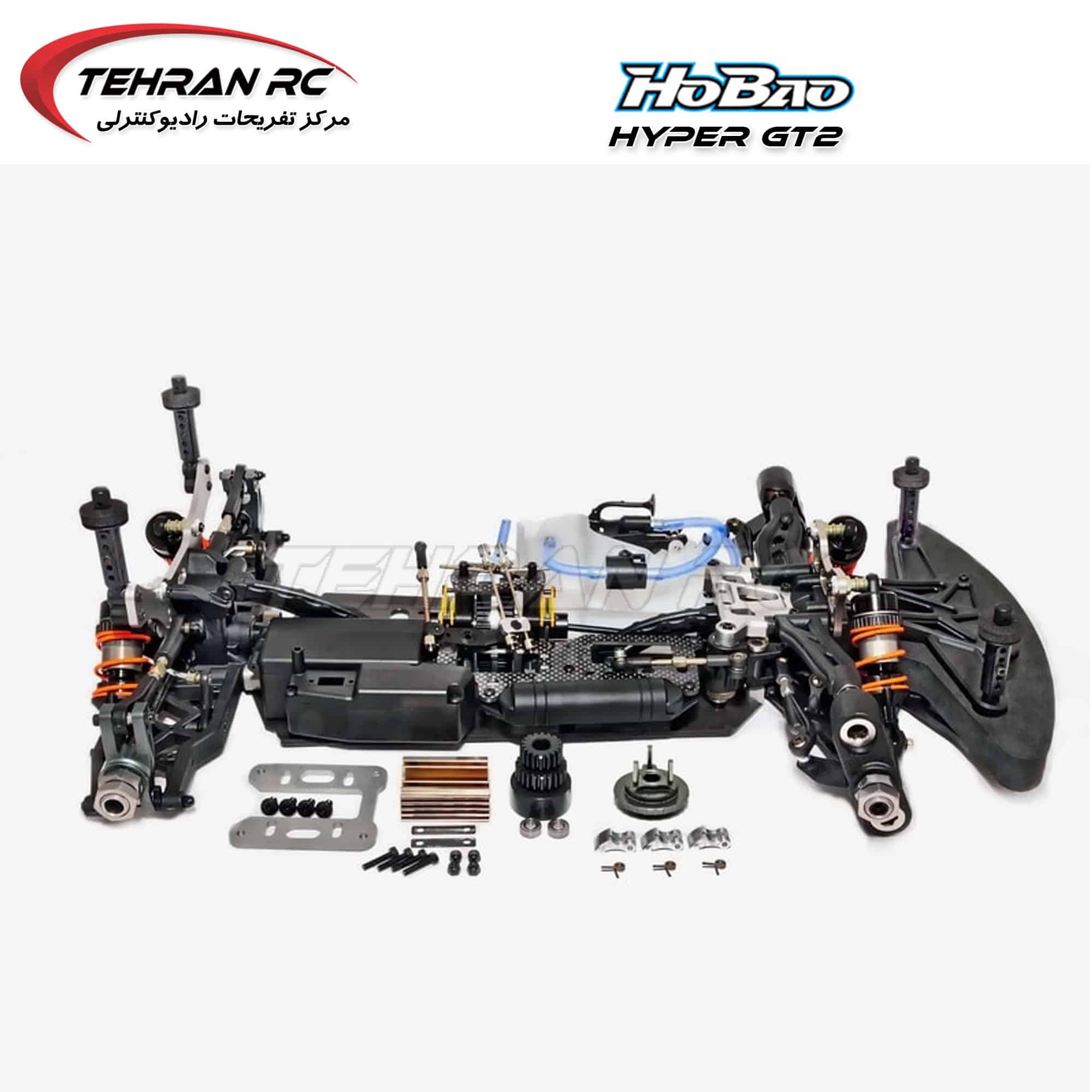

Clutch:

• New CNC aluminum clutch shoes
• 1.1mm clutch springs
• Dual Brake and Linkage
• 35mm Lightweight Flywheel
• Adjustable Engine Mount
• Optimized Fuel Tank with Filter, Capacity: 150ccCar
• bon Fiber Servo Tray and Differential Top Plate

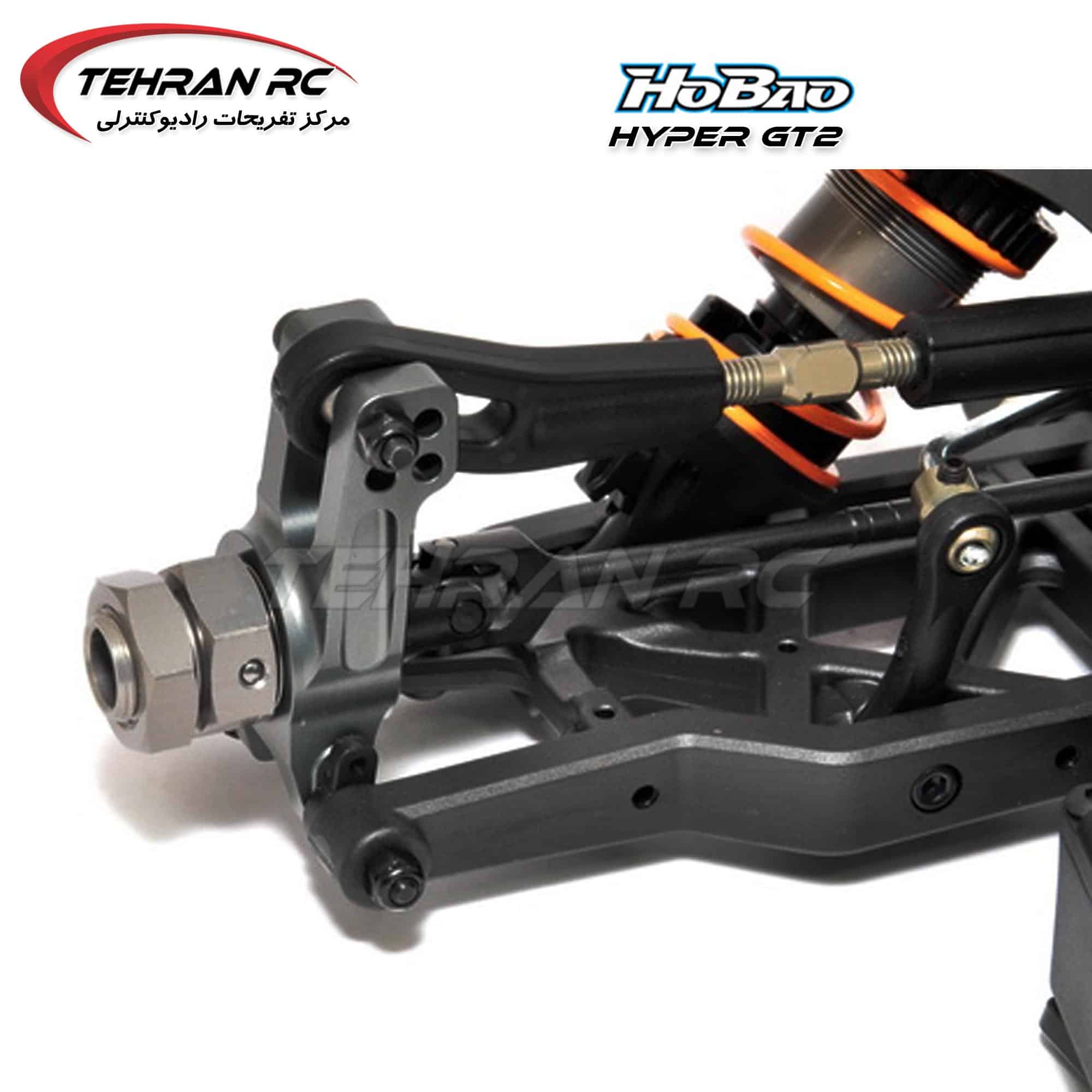

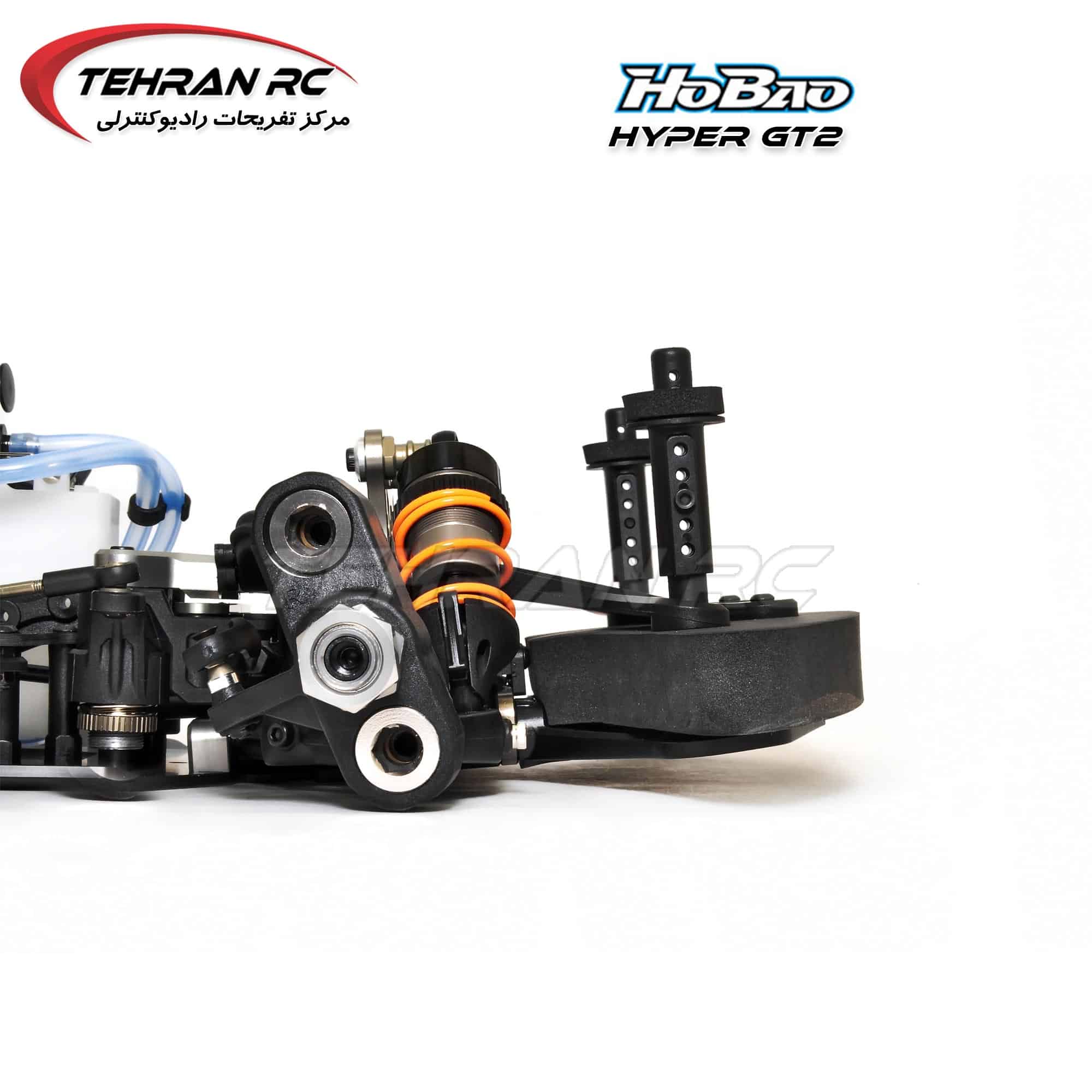

• CNC Aluminum Rear Hub
• New CNC Aluminum Front Top Plate
• Ball Bearing: Full set included

Shock Absorber:

• Adjustable metal shock absorber
• Oil-filled 17mm big bore shock with #600 silicone oil and ring nut can be adjusted to change the hardness of spring
• 4mm diameter shaft

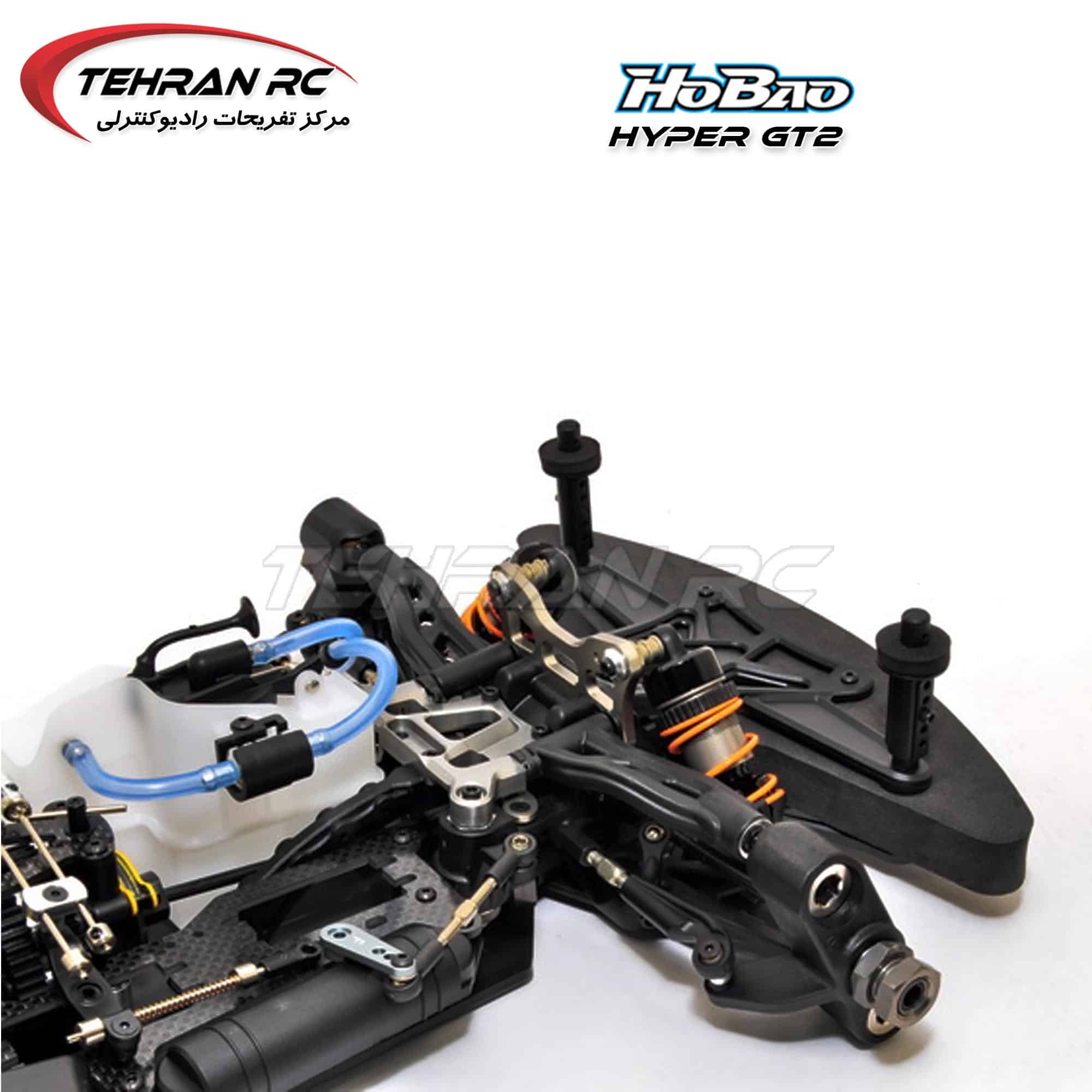

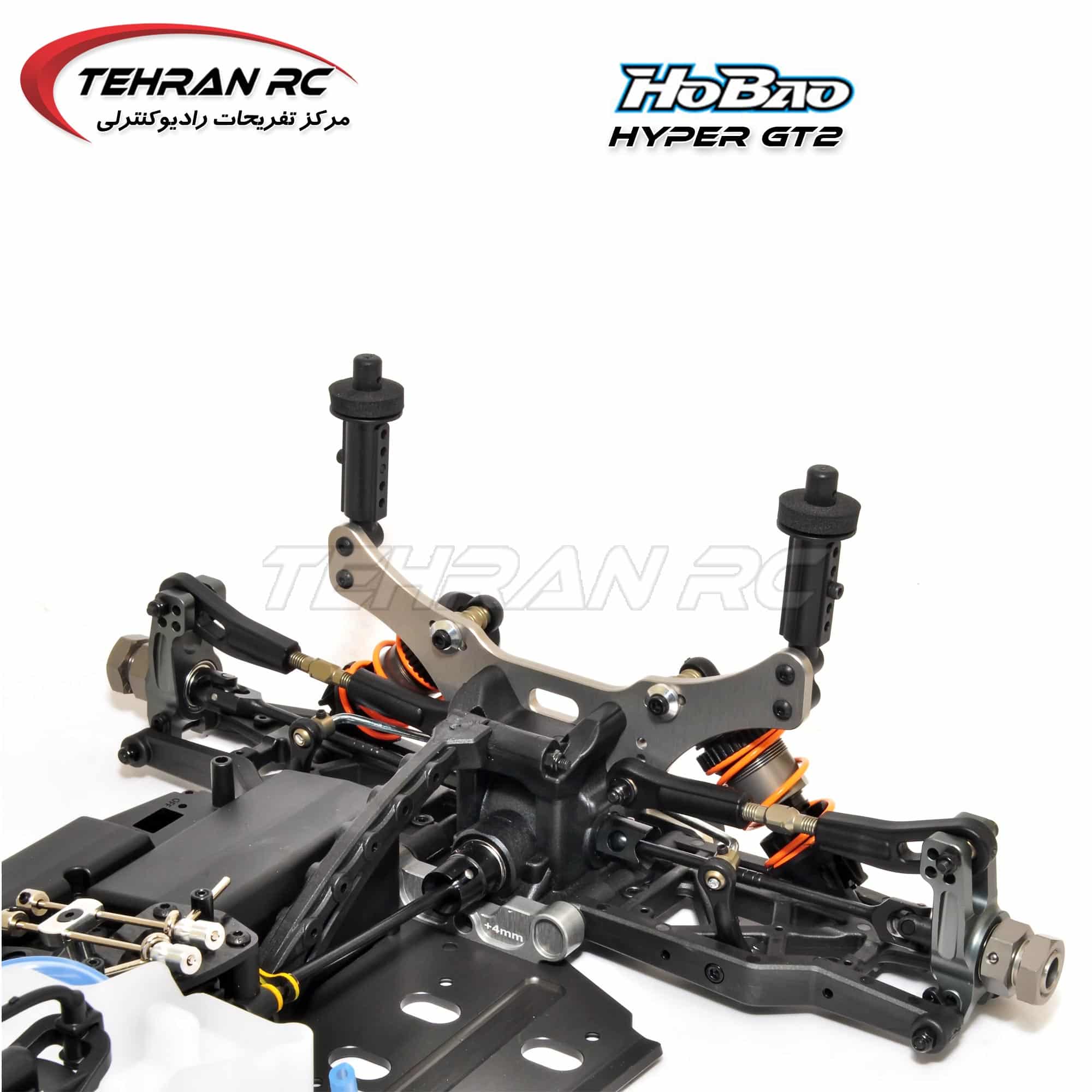

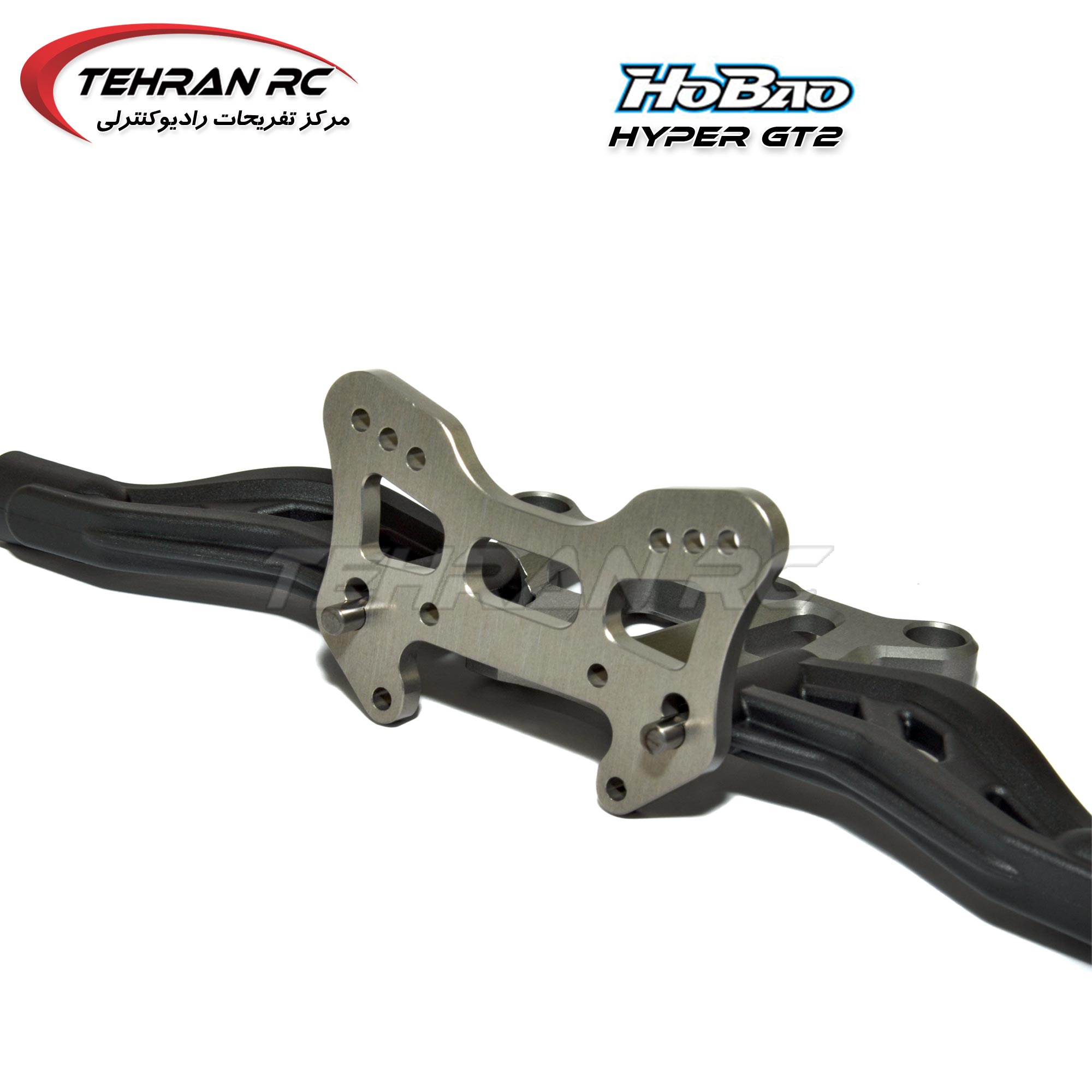

Shock Tower:

• New 4mm thick CNC aluminum front and rear tower
• Tower plate with multiple holes for fixing the shock absorbers to change the setup

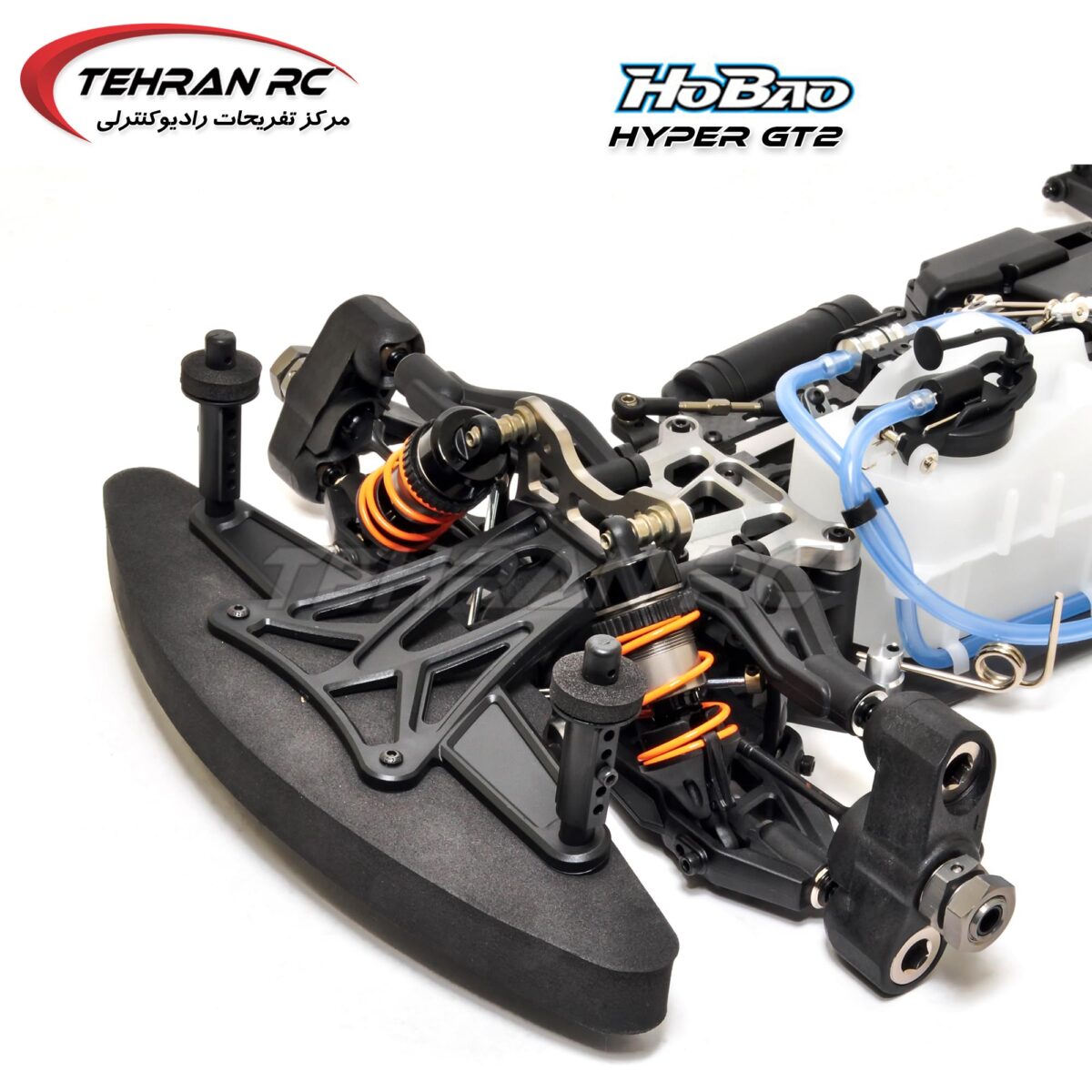

Suspension:

• Front and rear adjustable sway bar
• Front PBS, reinforced composite upper arms and lower arms
• Front lower with droop screw
• Adjustable roll centre of front lower arms and front upper arms
• Extra Battery Box
• Caster: Adjustable
• Camber: Adjustable

Requirements:

• 3-Channel Radio/Transmitter Set
• Engine & Glow Plug
• Manifold & Muffler
• Tires,Wheels, and Glue for Tire
• Body and Paint for body
• High-torque Steering Servo
• LiPo Batteries
• Battery Charger
• Batteries for Transmitter
• Nitro Fuel
• Glow starter building and track equipment
